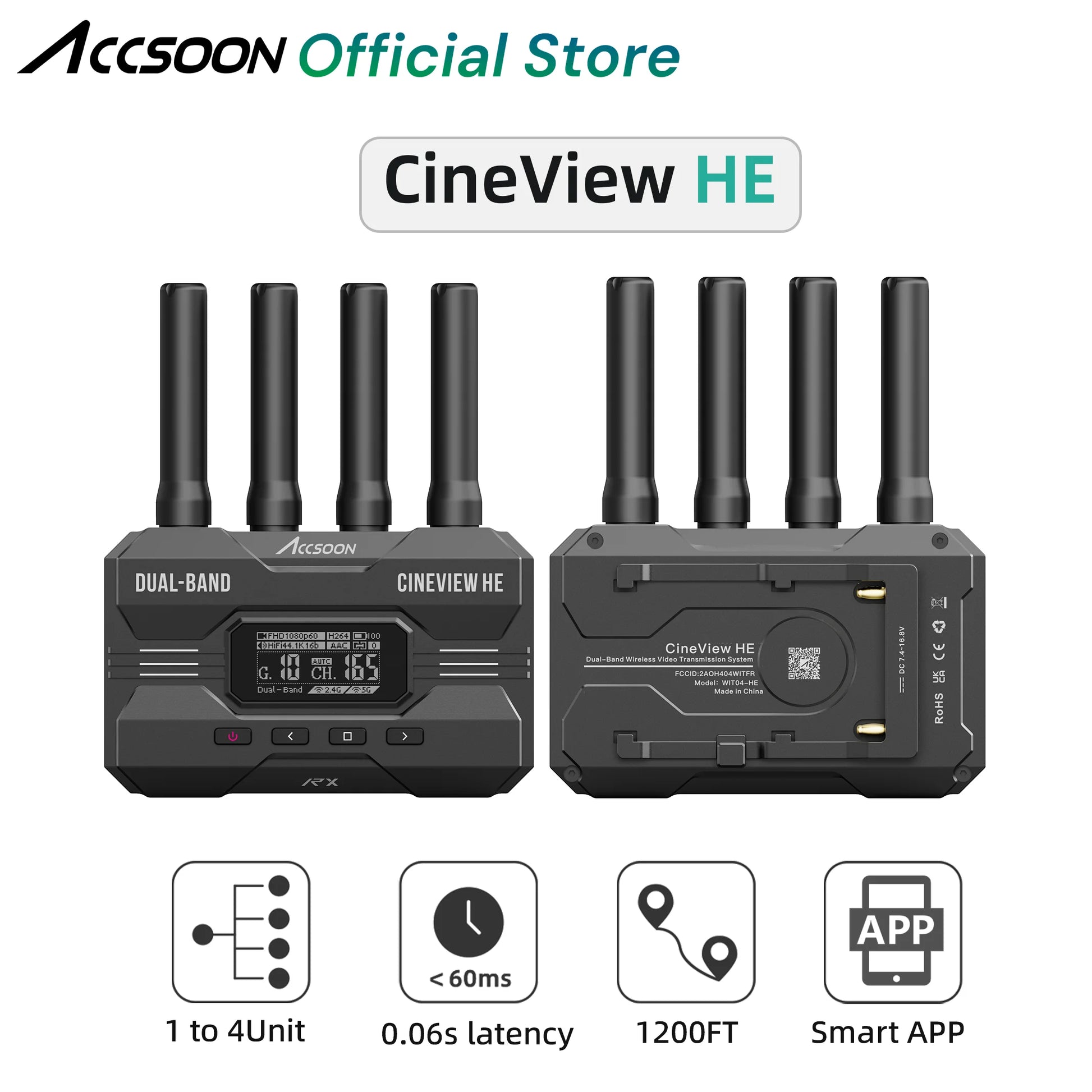

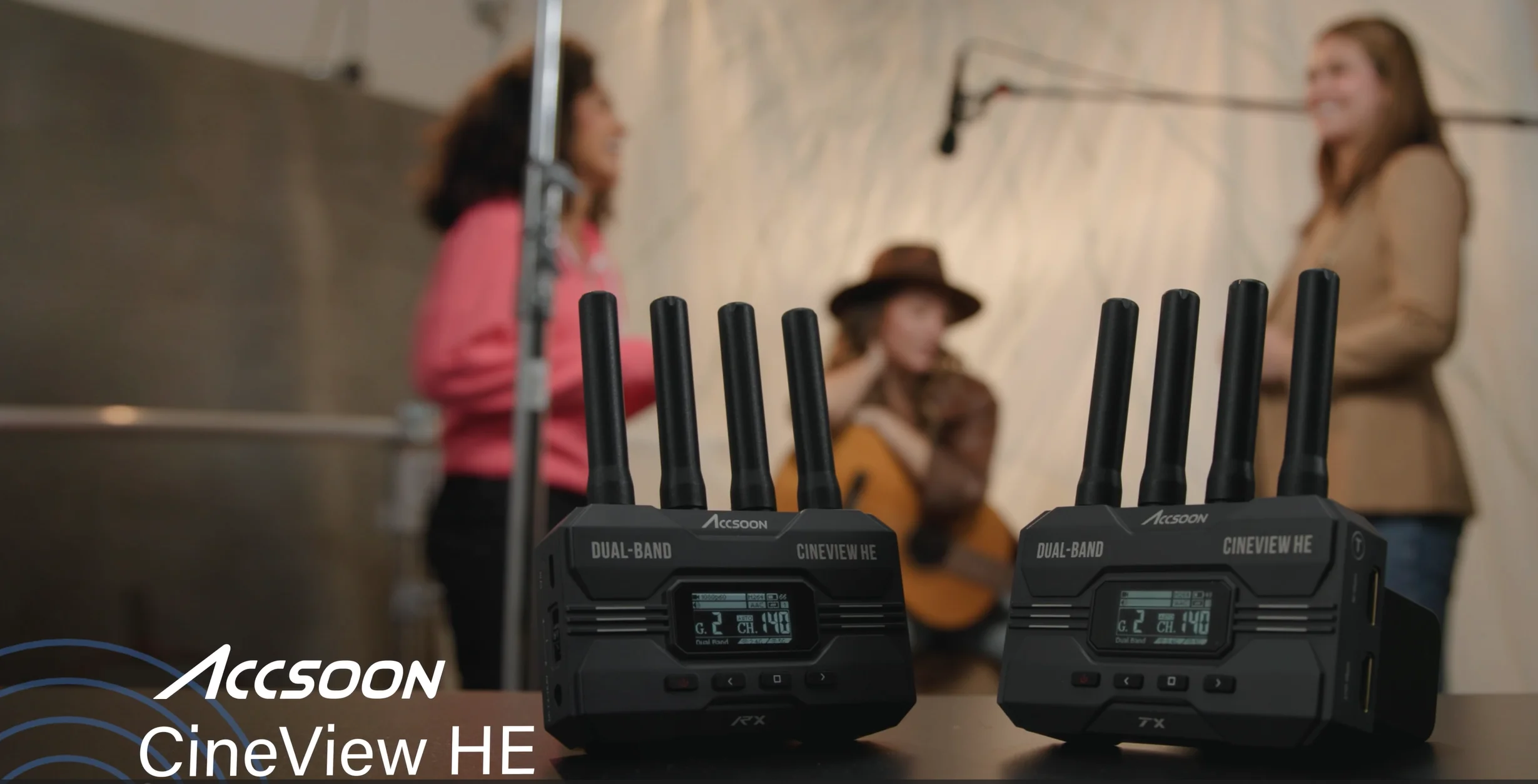

Wireless Hdmi Accsoon CineView HE Video Camera Transmitter Receiver 2.4/5G hz Dual-band Transmission UVC Live Streaming Monitor

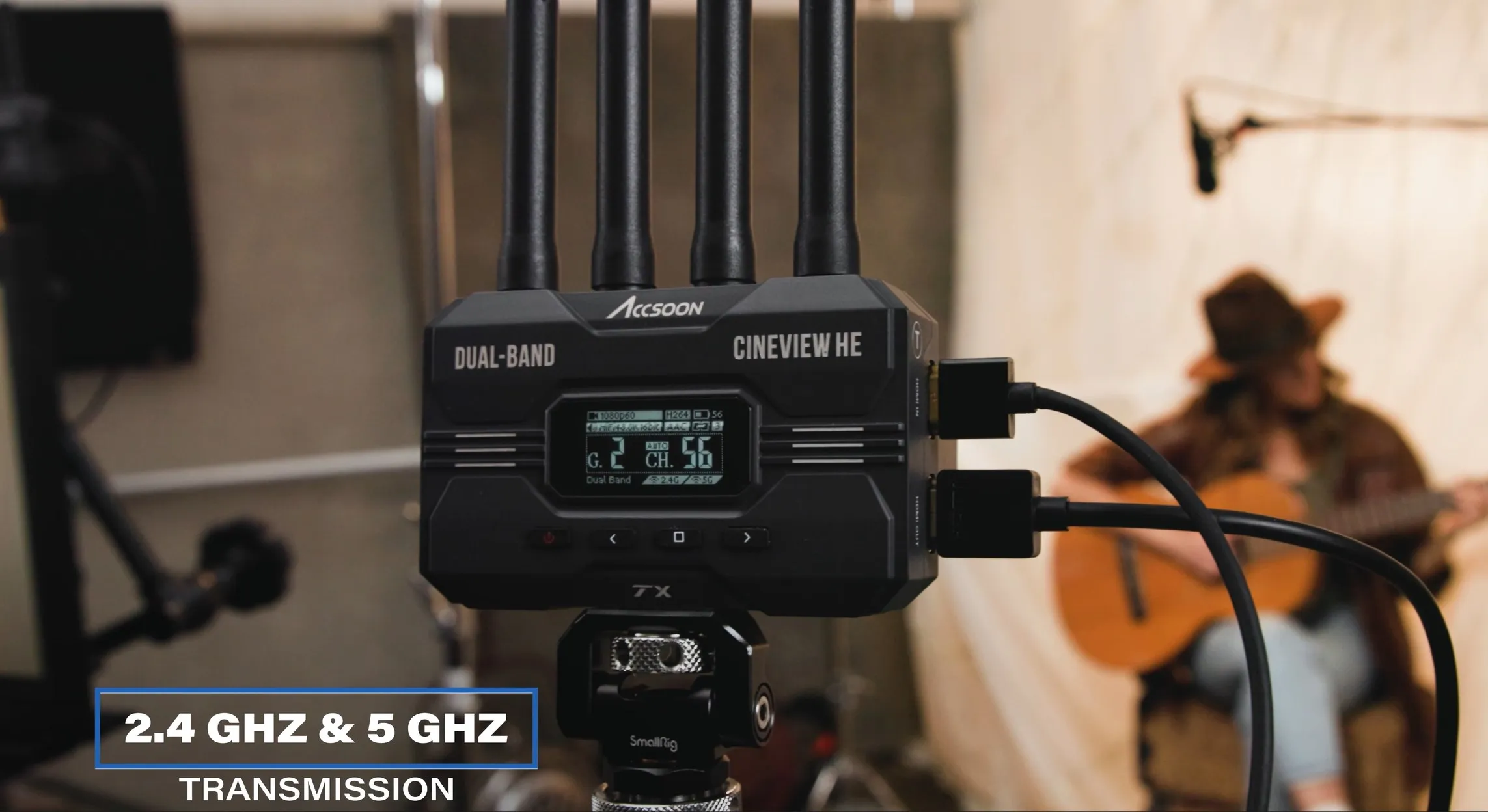

• 👍【2.4GHZ+5GHZ Daul-band Transmission】: CineView HE is equipped with Dual-Band transmission technology to bring industry-leading stability to the wireless video transmission system. Dual-Band transmission technology means you never have to worry about video or audio drop or switch signal issues again.

• 👍【1200FT/350M, 0.06S】: Control what you see within long-range & ultra-low latency ,CineView HE enables users to experience the stability of transmitting images and audio smoothly over long distance, even the size of a football pitch, with a latency of less than 0.06s.

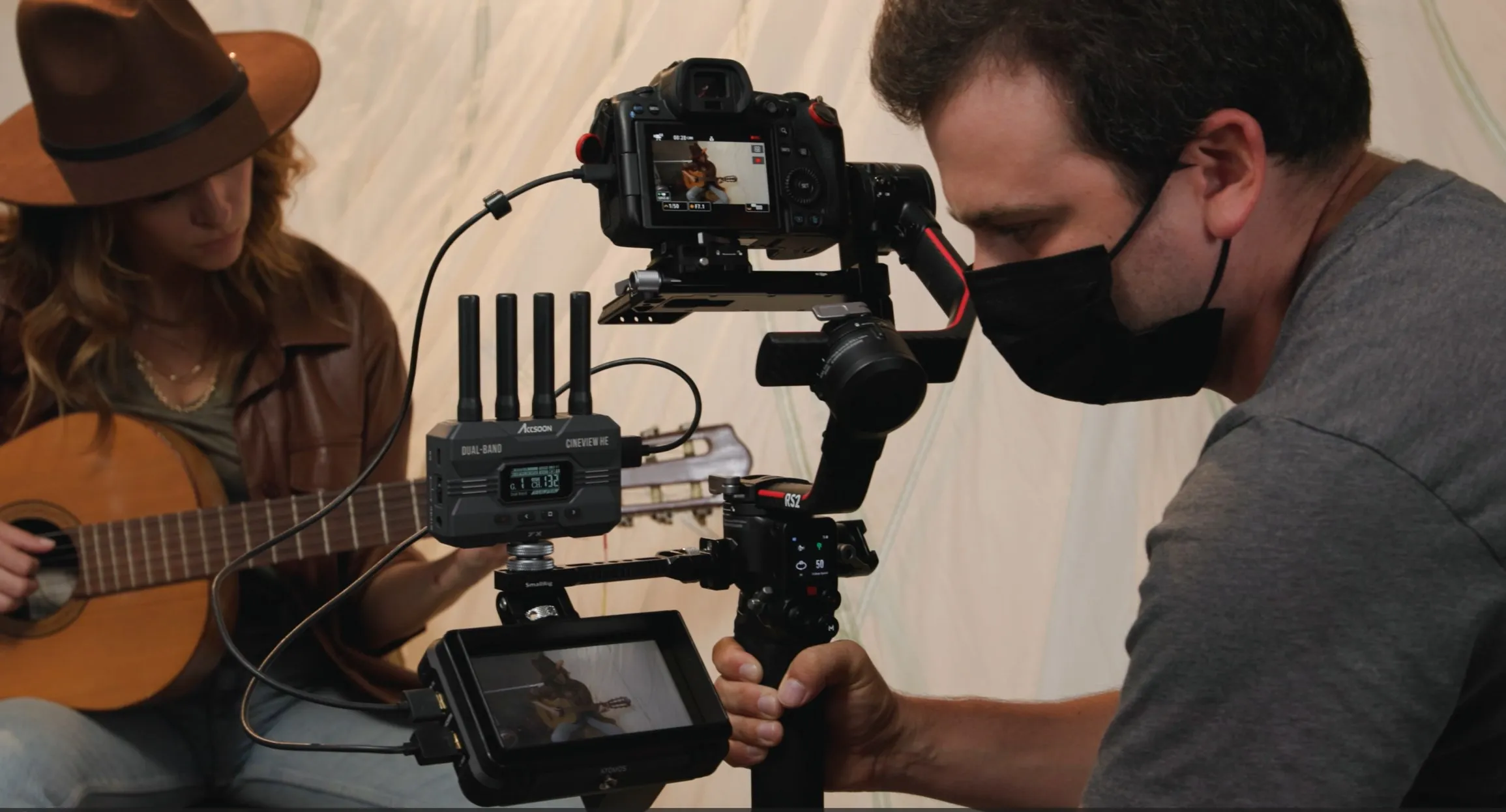

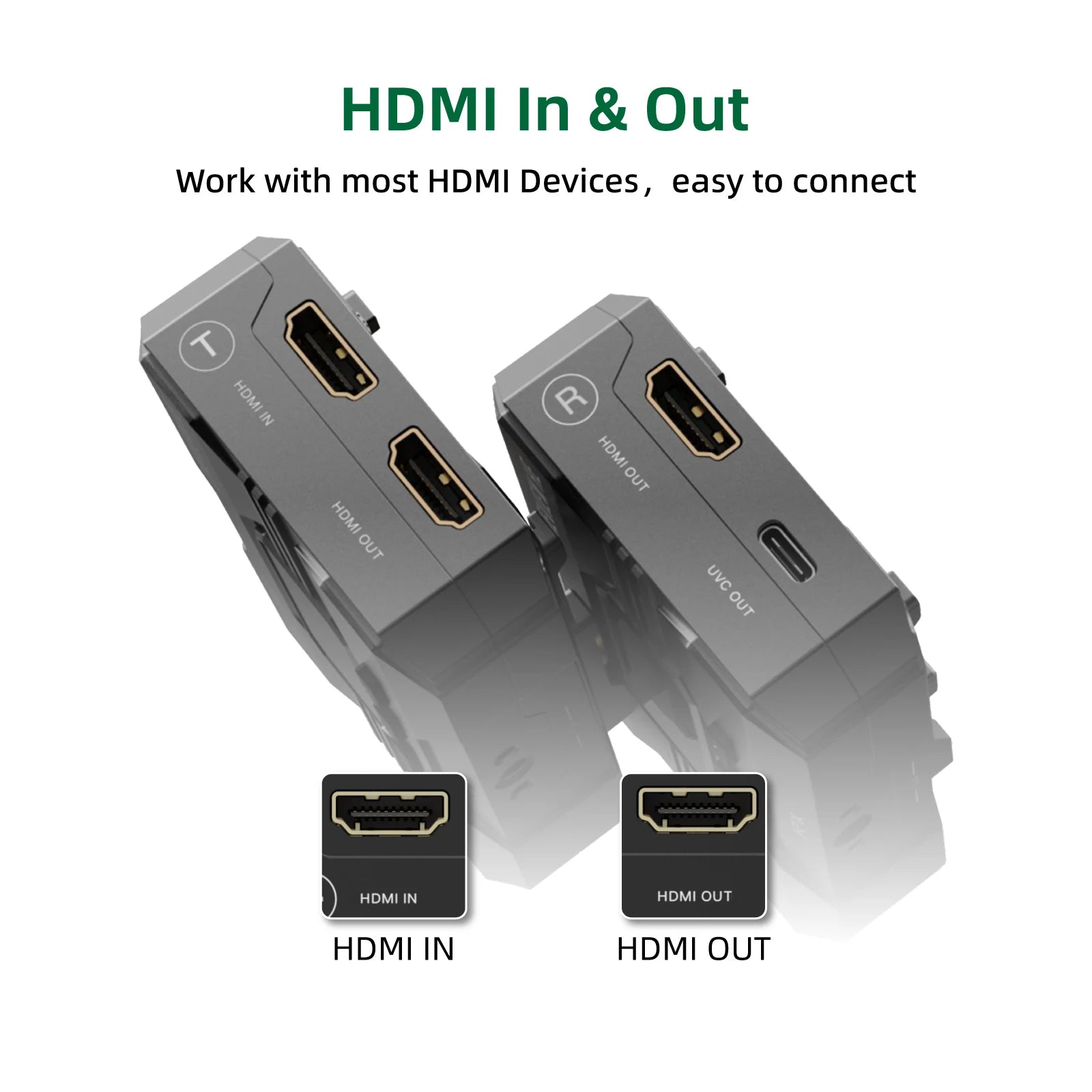

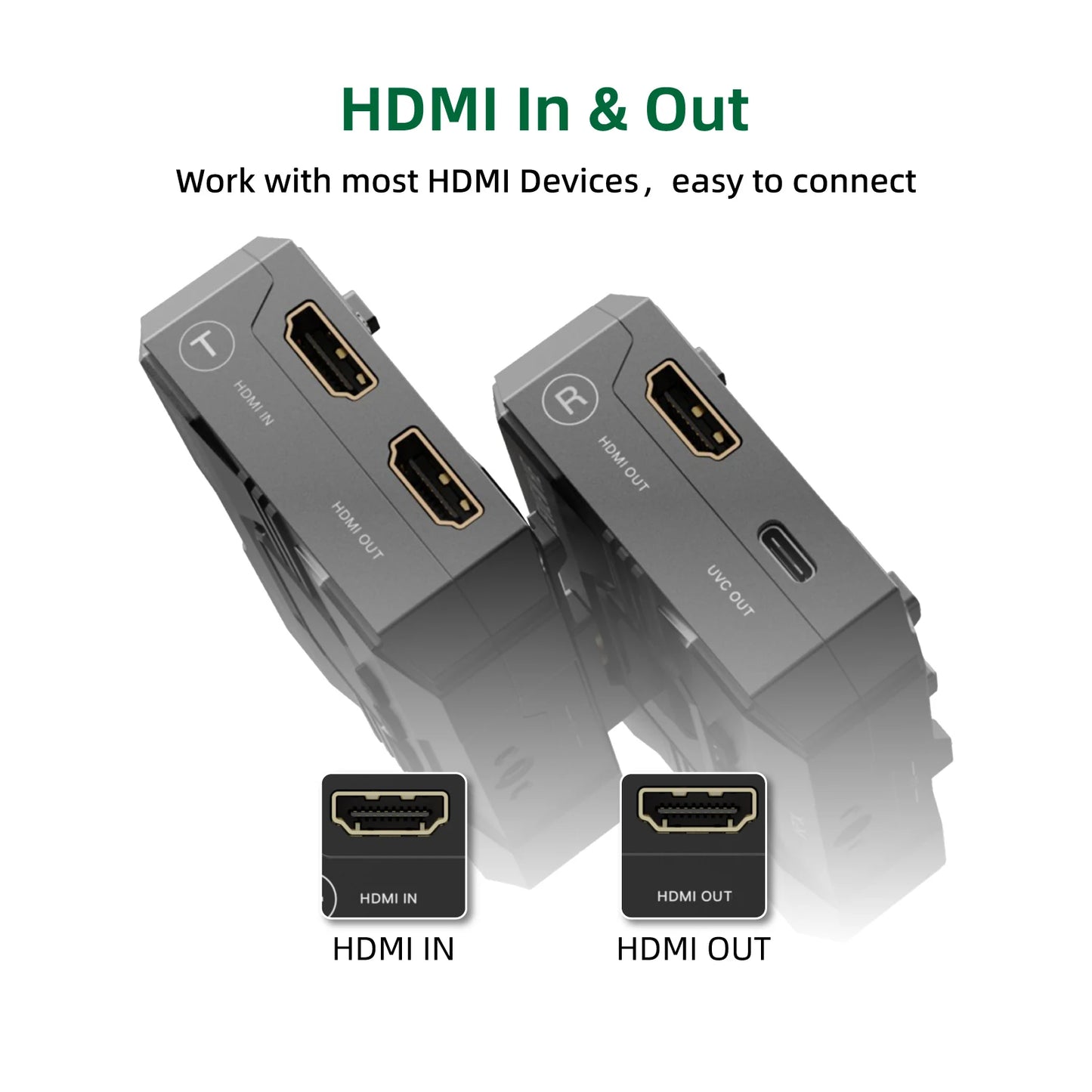

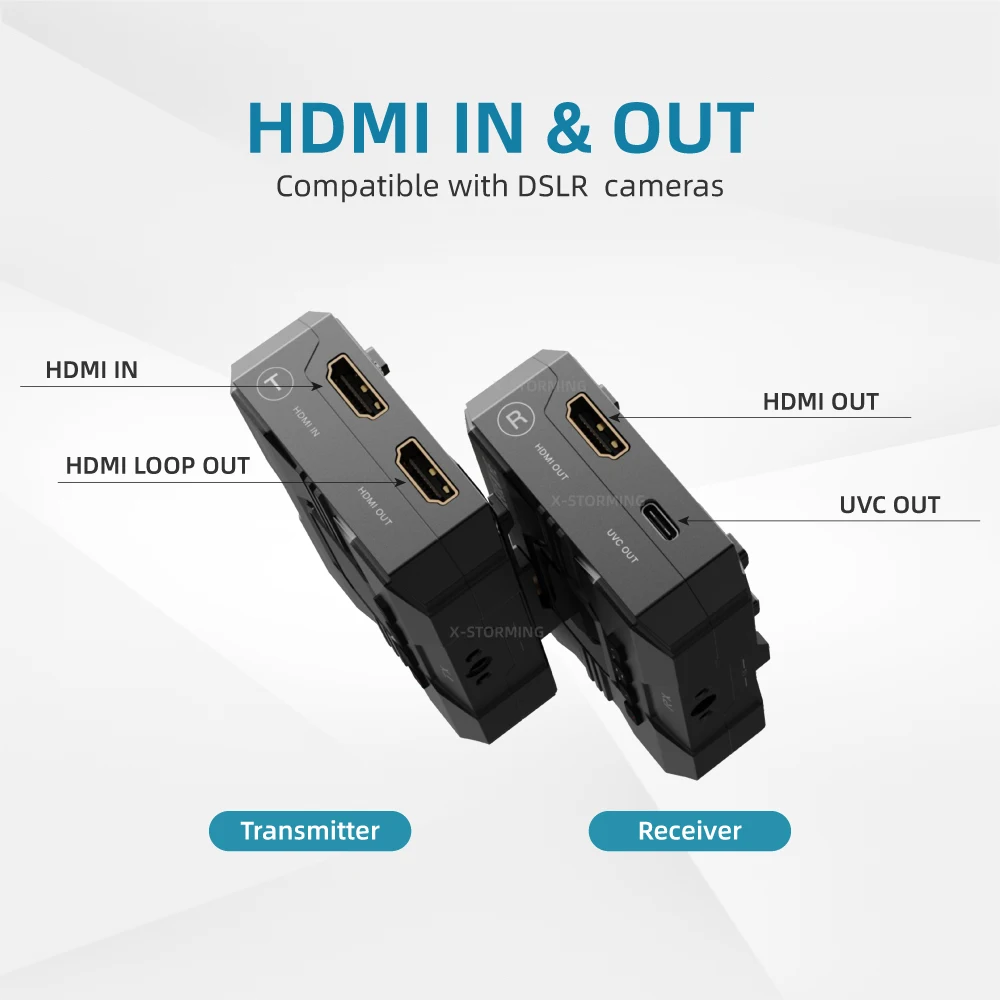

• 👍【HDMI IN & LOOP-OUT】: Conntect in multipule ways,CineView HE transmitter features one HDMI in and one HDMI loop-out, which can be connected to the camera and monitor, respectively. Whats more, HDMI loop-out has been upgraded to zero-latency lossless output.

• 👍【USB VIDEO CLASS(UVC)】:Simplify your live streaming,CineView HE has added a brand-new feature on the receiver: UVC out. From the receiver to the computer, you can use a USB-C cable (user-provided) to transfer the footage received by the receiver to any third-party streaming platform on your computer for live streaming, such as OBS and YouTube, etc. No additional video capture devices needed, the new UVC feature is all you require to live streaming, anywhere and anytime.

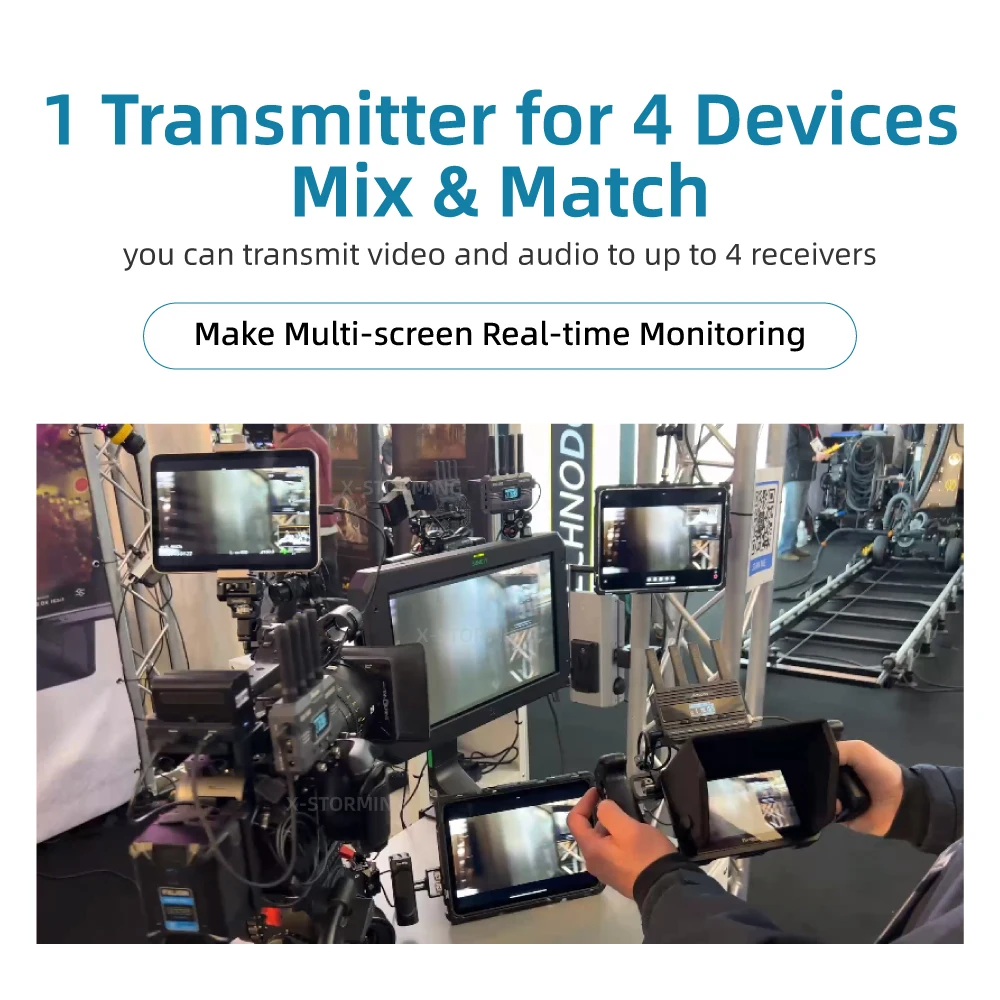

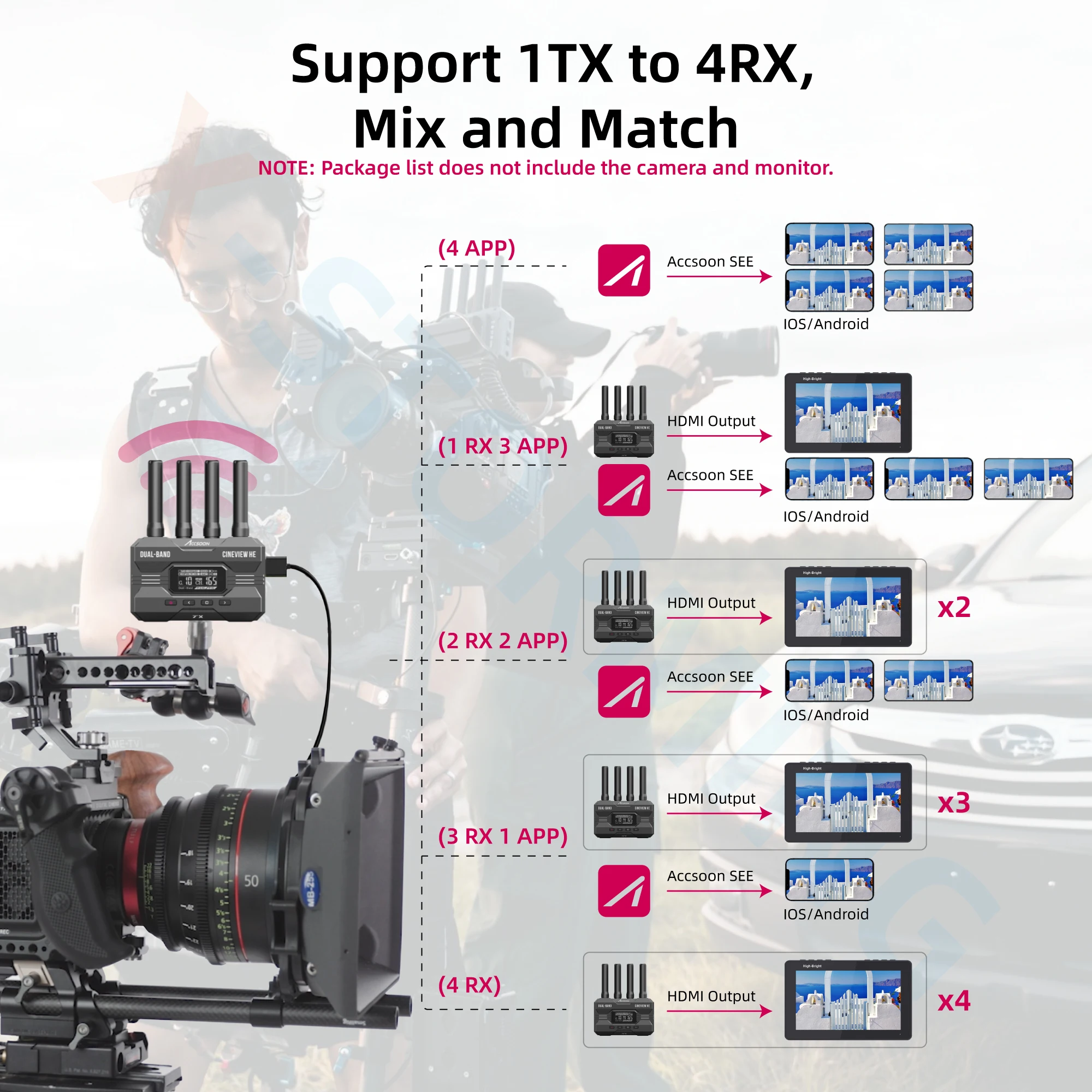

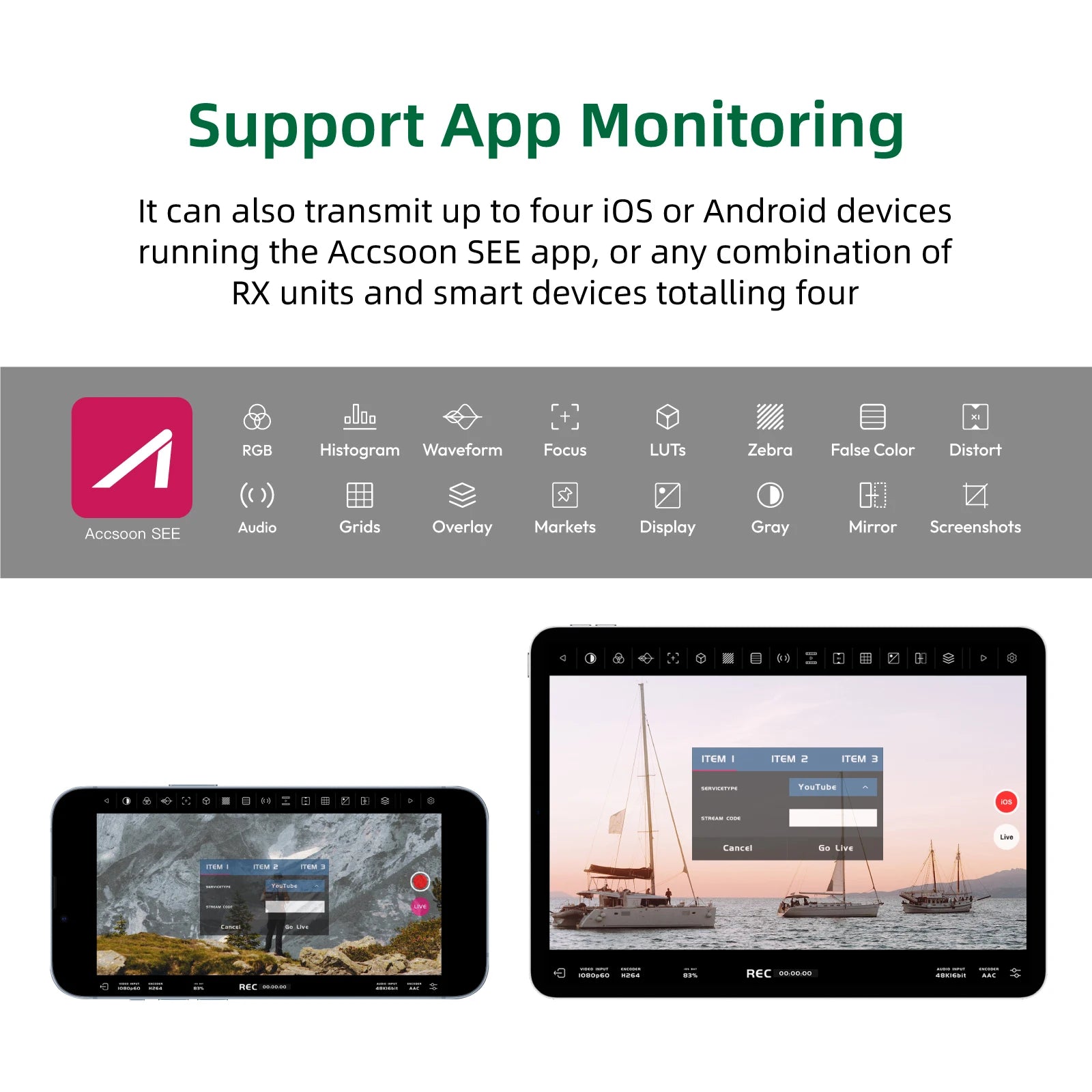

• 👍【Support any 4 Devices】: CineView RX or iOS&Android phones and tablets Use up to 4 receiving devices at the same time.

1. Accsoon CineView HE : 2.4GHz+5GHz Dual-Band Transmission Technology

2. Latency Less Than 0.06s

3. Long-Distance Transmission of 1200 ft/350m

4. HDMI In and Loop-out, USB Video Class (UVC) Out

5. 1 Transmitter for 4 Devices, Pick & Mix and Match

6. No Fan Design

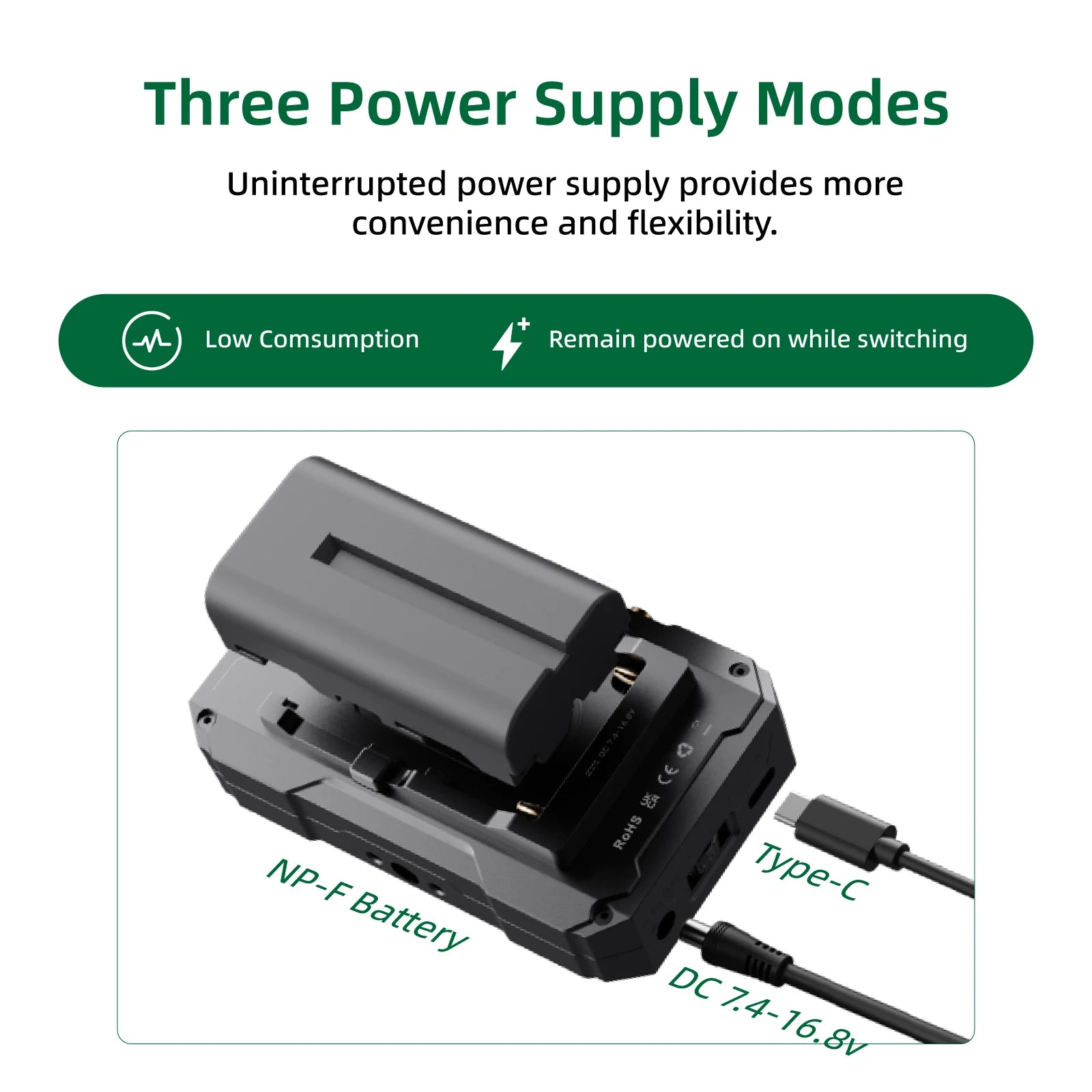

7. Powered by DC Input, NP-F Battery or USB-C

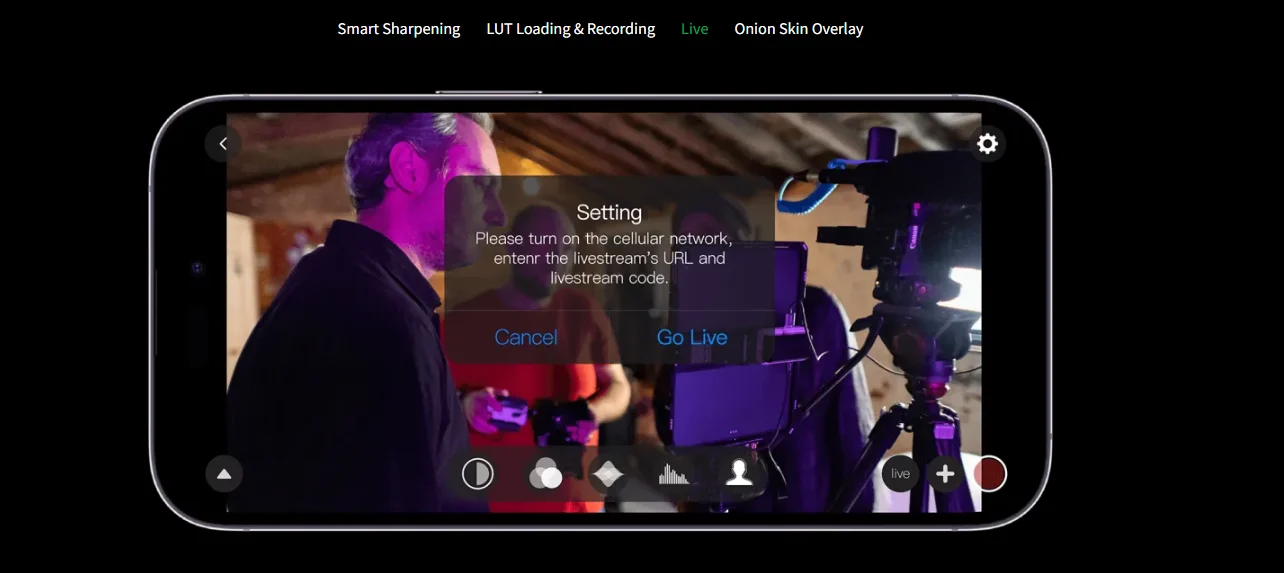

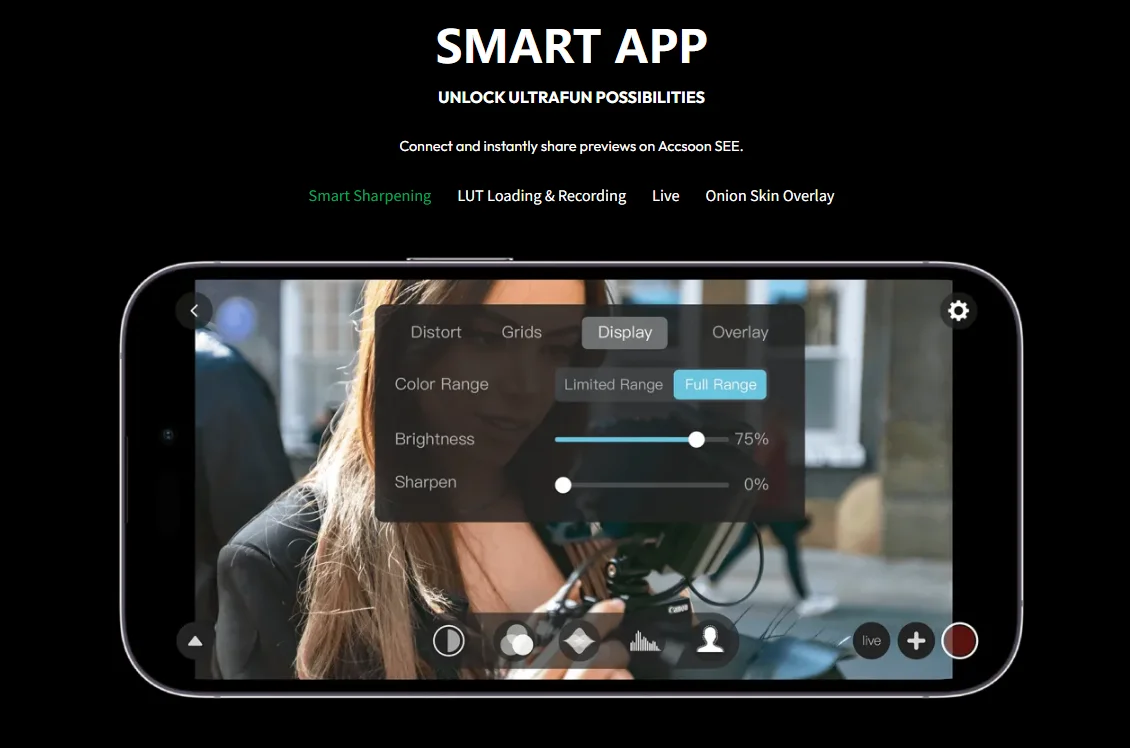

8. Wireless Remote Monitoring App Accsoon Go

9. Automatic Channel Selection

10. Easy Group Pair

11. FHD Video and High-Quality Audio Transmission

12. Aerospace-Grade Aluminum Alloy

13. Accsoon CineView HE : 1.3 inch OLED Screen

14. Firmware Update with Ease

15. Quick Installation & Easy to Carry

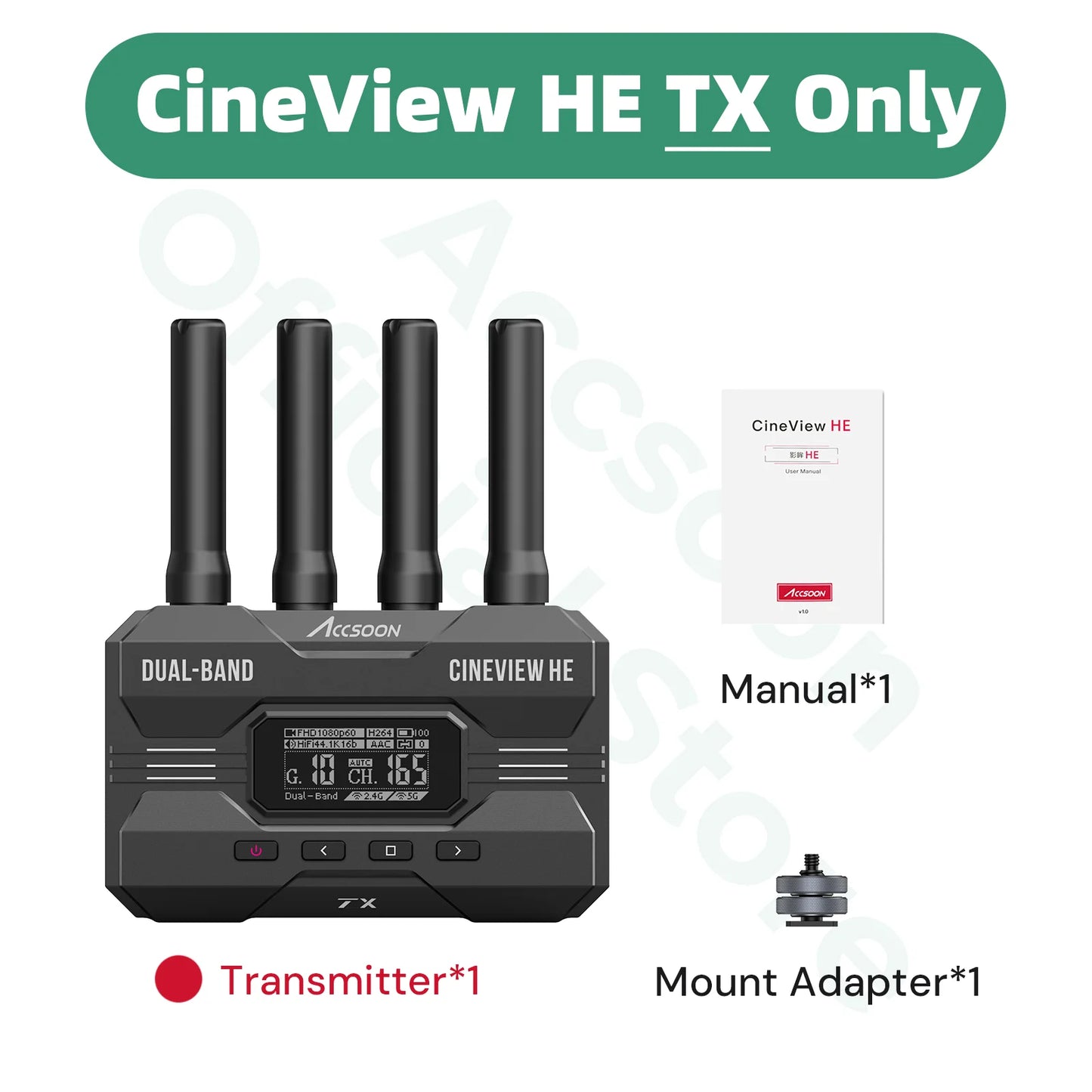

Transmitter Specifications

• Video Input: HDMI

• HDMI Input Format: 1080p (23.98/24/25/29.97/30/50/59.94/60fps)

• HDMI Output Format: 1080p (23.98/24/25/29.97/30/50/59.94/60fps)

• DC Port: 5.5mm x 2.1mm (center positive)

• DC Voltage: 7.4V ~ 16.8V

• Audio: 44.1KHz/48KHz, 16bit/24bit PCM

• Latency: <0.06s (camera latency not included)

• OLED Display: 1.3 inch

• Transmission Power: 17 ~ 20dBm

• Transmission Range: 1200ft (no obstacles, no interference)

• Power Consumption: 4.5W (typical)

• Operating Environment Temperature: -10℃ ~ 40℃

• Dimensions: 105mm x 66mm x 32mm (antennas not included)

• Weight: 200g (antennas included)

Receiver Specifications

• Video Output: HDMI

• HDMI Output Format: 1080p (24/25/30/50/60fps)

• DC Port: 5.5mm x 2.1mm (center positive)

• DC Voltage: 7.4V - 16.8V

• OLED Display: 1.3 inch

• Power Consumption: 4.2W (typical)

• Operating Environment Temperature: -10℃ to 40℃

• Dimensions: 105mm x 66mm x 32mm (antennas not included)

• Weight: 200g (antennas included)
