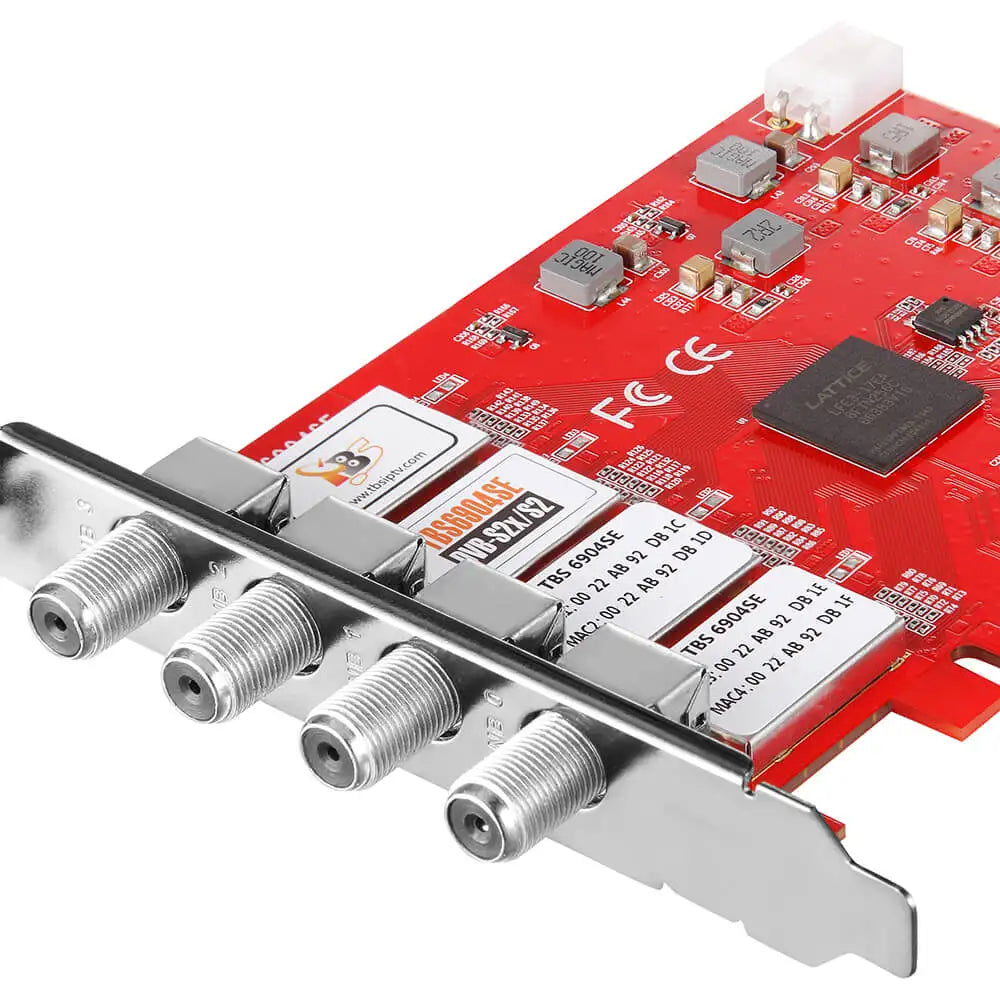

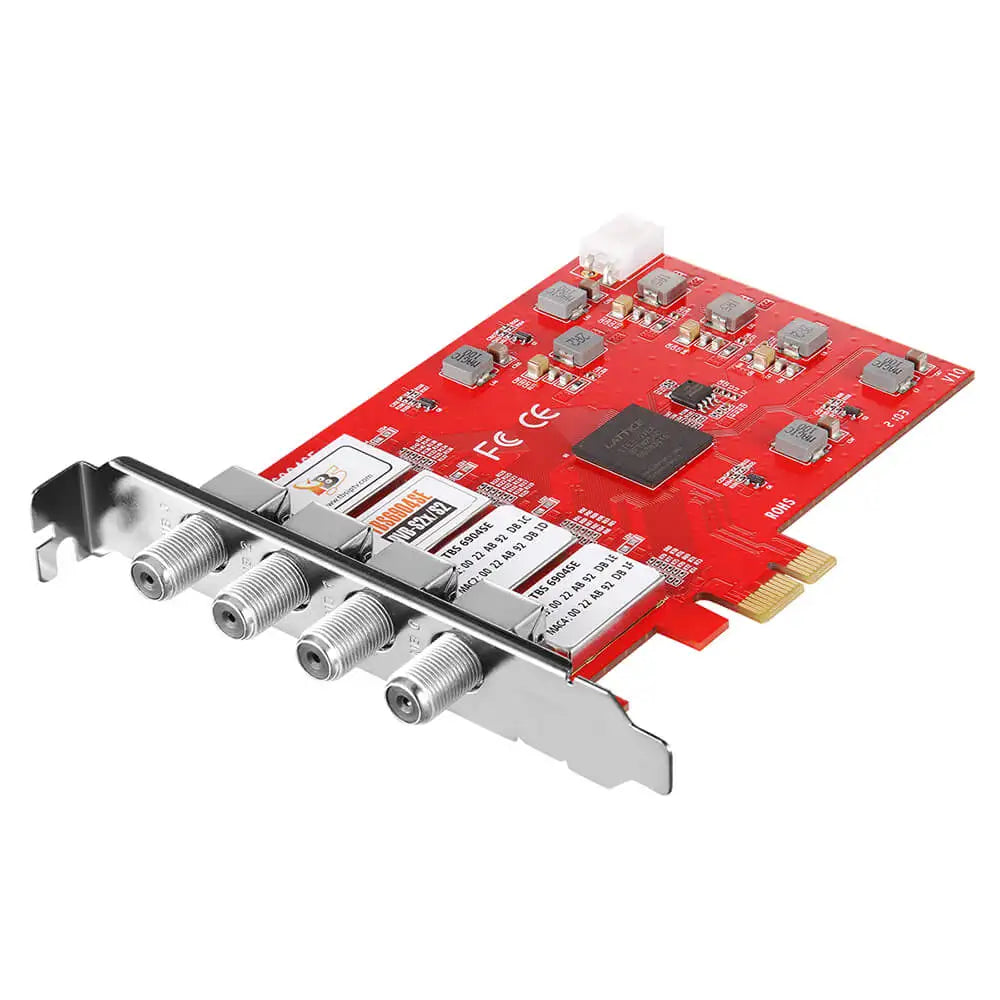

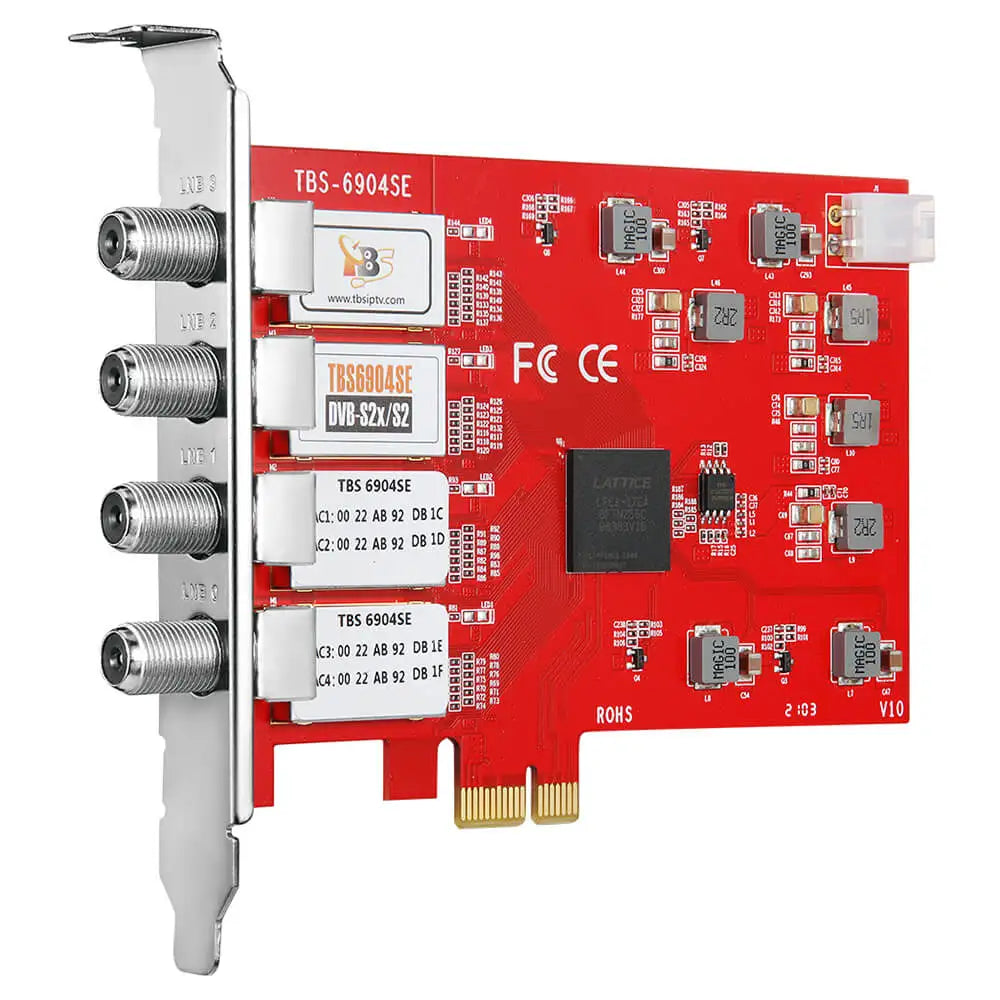

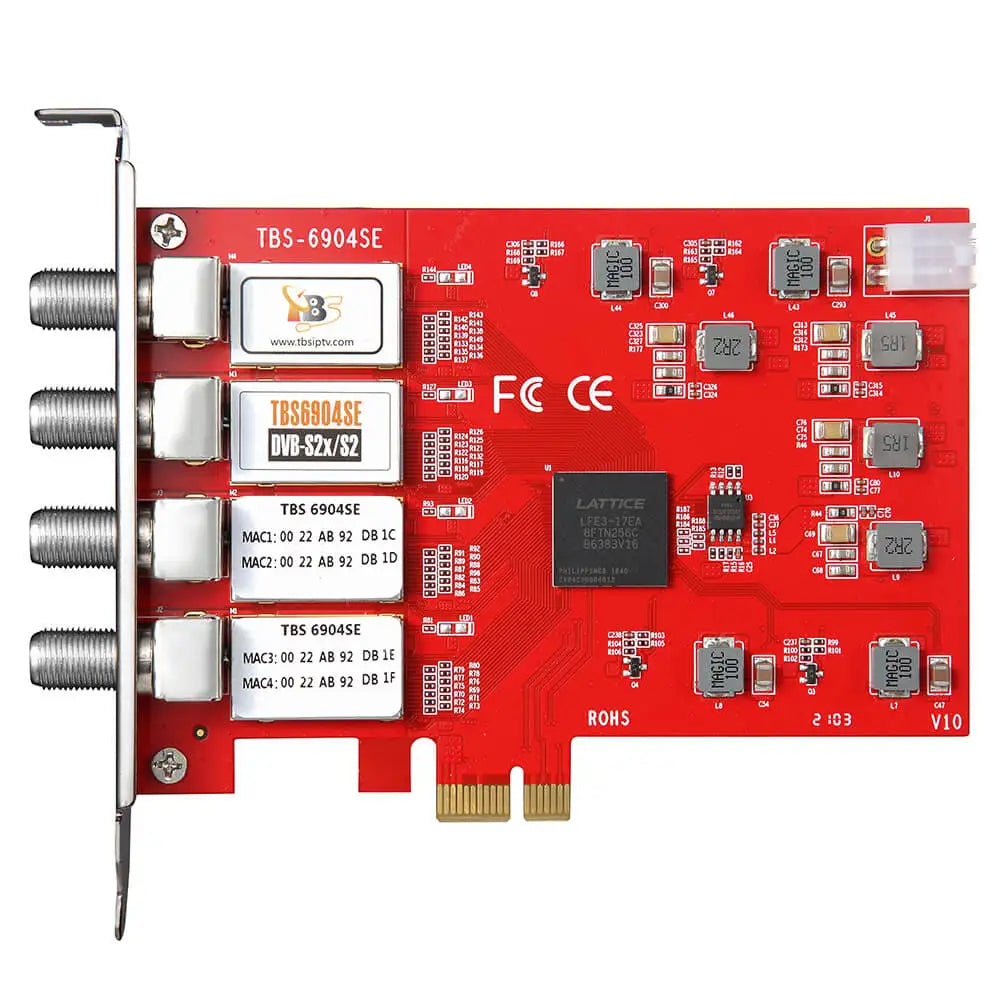

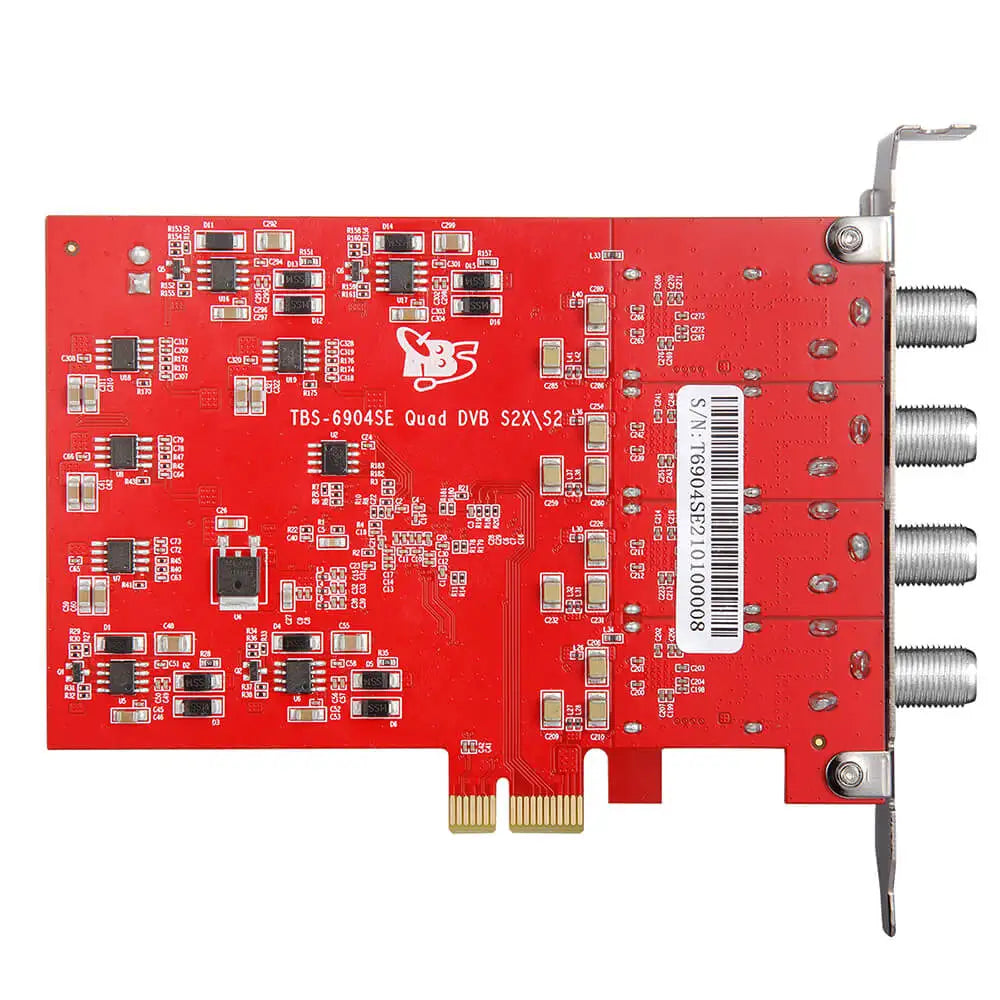

TBS6904se DVB-S S2 S2X Quad Tuner PCIe Card for Watching and Recording Satellite FTA TV Channels on PC

TBS6904se DVB-S S2 S2X Quad Tuner PCIe Card for Watching and Recording Satellite FTA TV Channels on PC

Regular price €263,99 EUR
Regular price €274,99 EUR Sale price €263,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Default Title
Quantity

TBS6904SE is the successor of TBS6904, it not only supports to receive SD/HD
digital TV channels from 4 different satellite transponders
simultaneously, but also supports ACM, VCM, which is considered as a
professional TV tuner for industrial-level users. The four advanced
DVB-S2X/S2/S tuners enable you to watch TV channel from one satellite
transponder, while recording three other channels from different
satellite transponders at the same time. This quad tuner card is one of
the most popular TV tuners for building IPTV streaming systems

Main Features:

  • Support Quad DVB-S/S2/S2X

  • Fast scanning functionality for all media

  • Supports ACM, VCM and multi stream

  • High-speed data download via satellite

  • Watch & record satellite TV/ radio programs on PC

Applications:

  • Data receiving

  • IPTV streaming

  • Media monitoring

  • Digital content distribution

Specification

Model

TBS6904SE

Connection

PCI-express


4x RF in

DVB-S/S2/S2X

DVB-S/S2

QPSK

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK

3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK

2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK

3/4, 4/5, 5/6, 8/9, 9/10

DVB-S2X

QPSK

1/4,1/3, 2/5 (S2-MODCODs)

1/2, 3/5, 2/3, 3/4, 4/5, 5/6

8/9, 9/10 (S2-MODCODs)

11/45, 4/15, 14/45, 7/15 8/15, 32/45

8PSK (8APSK-L)

3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)

7/15, 8/15, 26/45, 32/45

16APSK

2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)

7/15, 8/15, 26/45, 3/5, 32/45

32APSK(32APSK-L)

3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs)32/45 ,11/15,7/9 ,(2/3)

VCM

Yes

ACM

Yes

Symbol rate

1~45Msymb/s

Power consumption

Input/ Power:

8~12W

temperature

0°~ 78°

System Requirements

Windows XP / Vista/ 7/8/10, Linux

Available PCI Express x1, x4, x8 or x16 slot

Dimension:

TV tuner card size

145*92*1.6mm

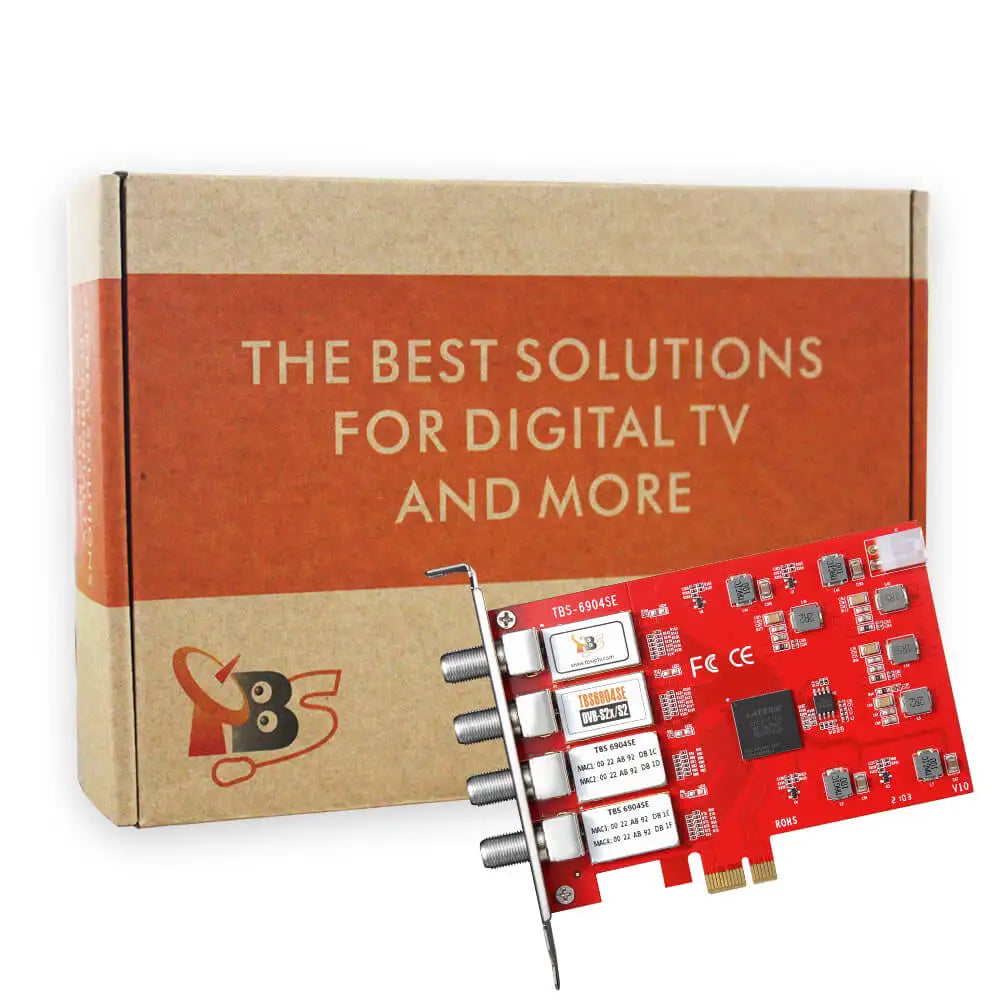

Gift Box Size

200*130*30mm

Weight

400g

Package Contents

1* TBS69094SE

1* Power cable



Modulator PCIe Card link:
