Partaker Firewall Appliance Intel i7-10510U/i5-5405U, 10x i210 LAN, Dual HDMI, DDR4, Support OPNsense/Ubuntu/Linux, 1U Rackmount
Partaker Firewall Appliance Intel i7-10510U/i5-5405U, 10x i210 LAN, Dual HDMI, DDR4, Support OPNsense/Ubuntu/Linux, 1U Rackmount
Couldn't load pickup availability
Processors |
Cores & Threads |
L3 Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
Intel Pentium 5405U |
2 cores, 4 threads |
2M |
2.30 GHz |
/ |
15W |
Intel Core I7 10510U |
4 cores, 8 threads |
8M |
1.80 GHz |
4.90 GHz |
15W |
• This is a 10th generation industrial computer with multiple network cards, suitable for camera vision detection, ethercat protocol, fast software routing, ROS network, linux system, and ubuntu system.
• It has an onboard 5405 dual-core four-thread processor with a frequency of 2.3GHz, and supports 2 x DDR4 260 PIN SO-DIMM slots, with a memory type of DDR4-2133 and a maximum single memory of 32GB.

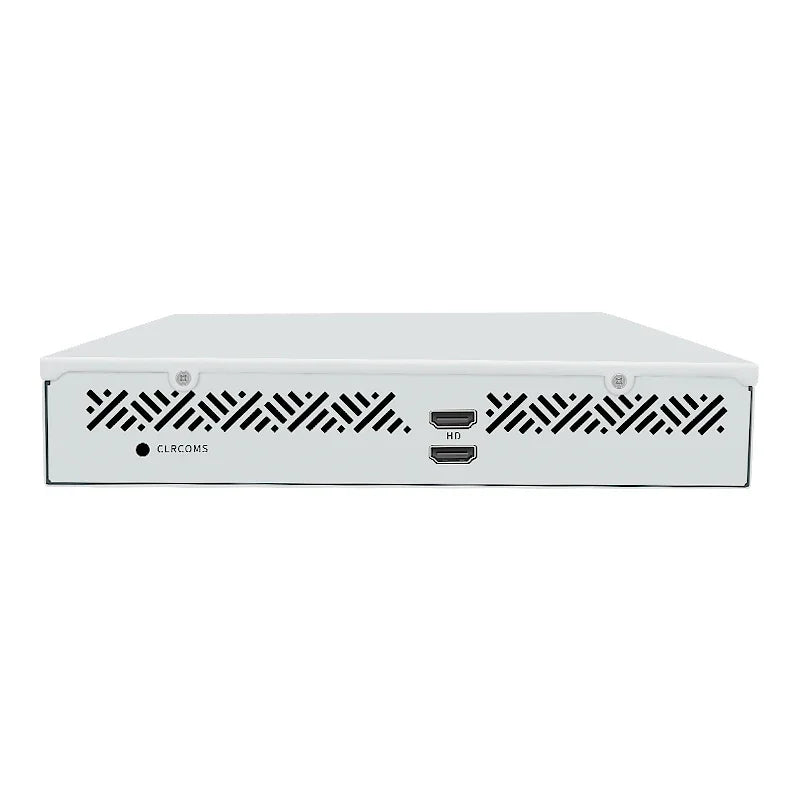

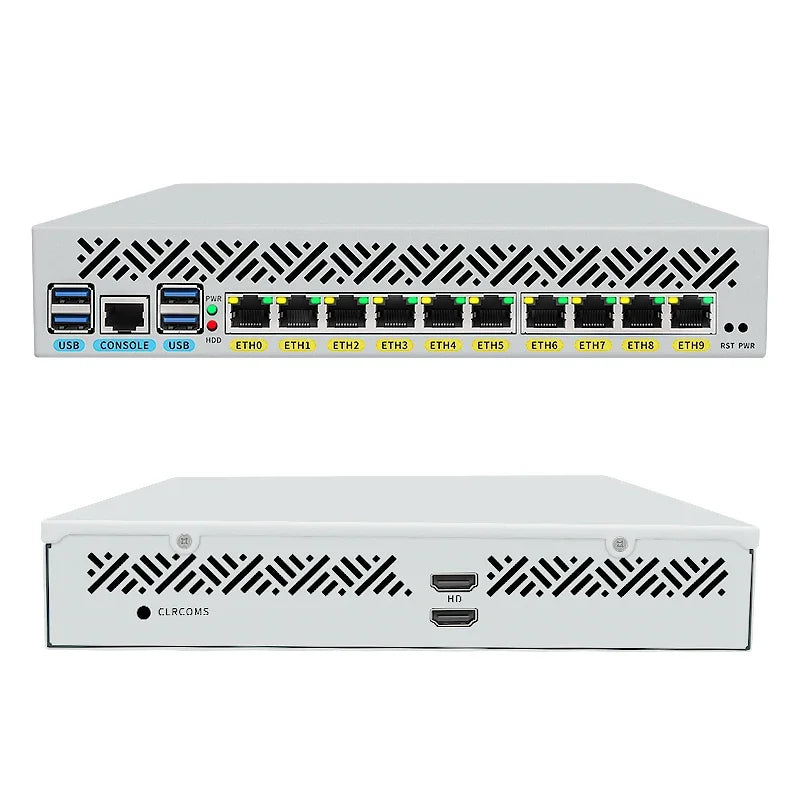

• It has an onboard Intel I210 gigabit network card chip, with 10 network ports, and supports 2 x dual-layer HDMI, which can display synchronously.
• It has 1 x SATA3.0 interface, 1 x mSATA solid state drive interface, and 1 x Mini PCIE interface, with only USB signal.

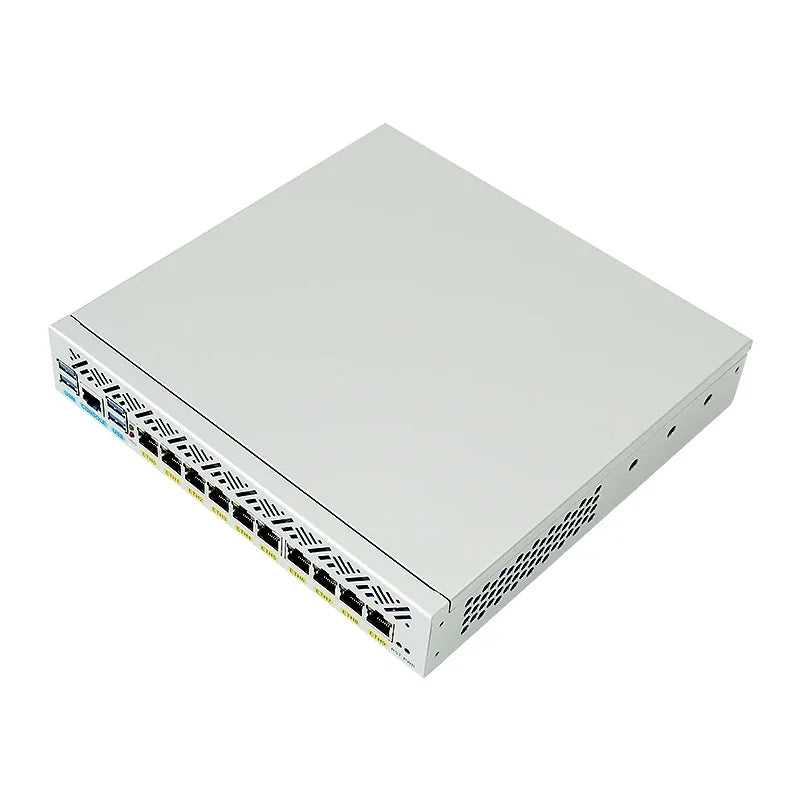

• It has a fanless design, with a size of 240 x 234 x 43mm, and a low power consumption of 15W.
