HiLink HLK-7688A MT7688AN Openwrt 150Mbps Wireless Router Module SDK Board with 128M RAM and 32M Flash

HiLink HLK-7688A MT7688AN Openwrt 150Mbps Wireless Router Module SDK Board with 128M RAM and 32M Flash

€32,99 EUR
€33,99 EUR €32,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Ships From

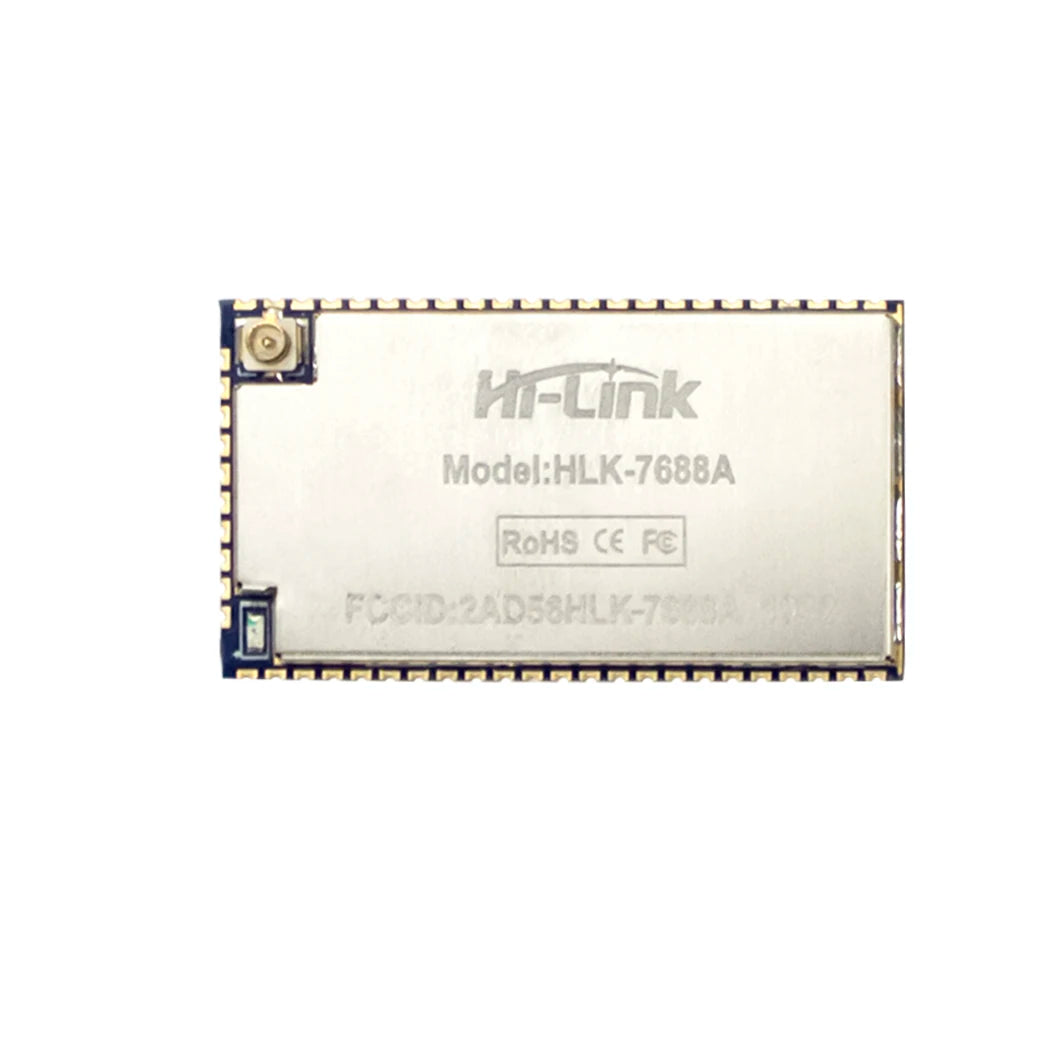

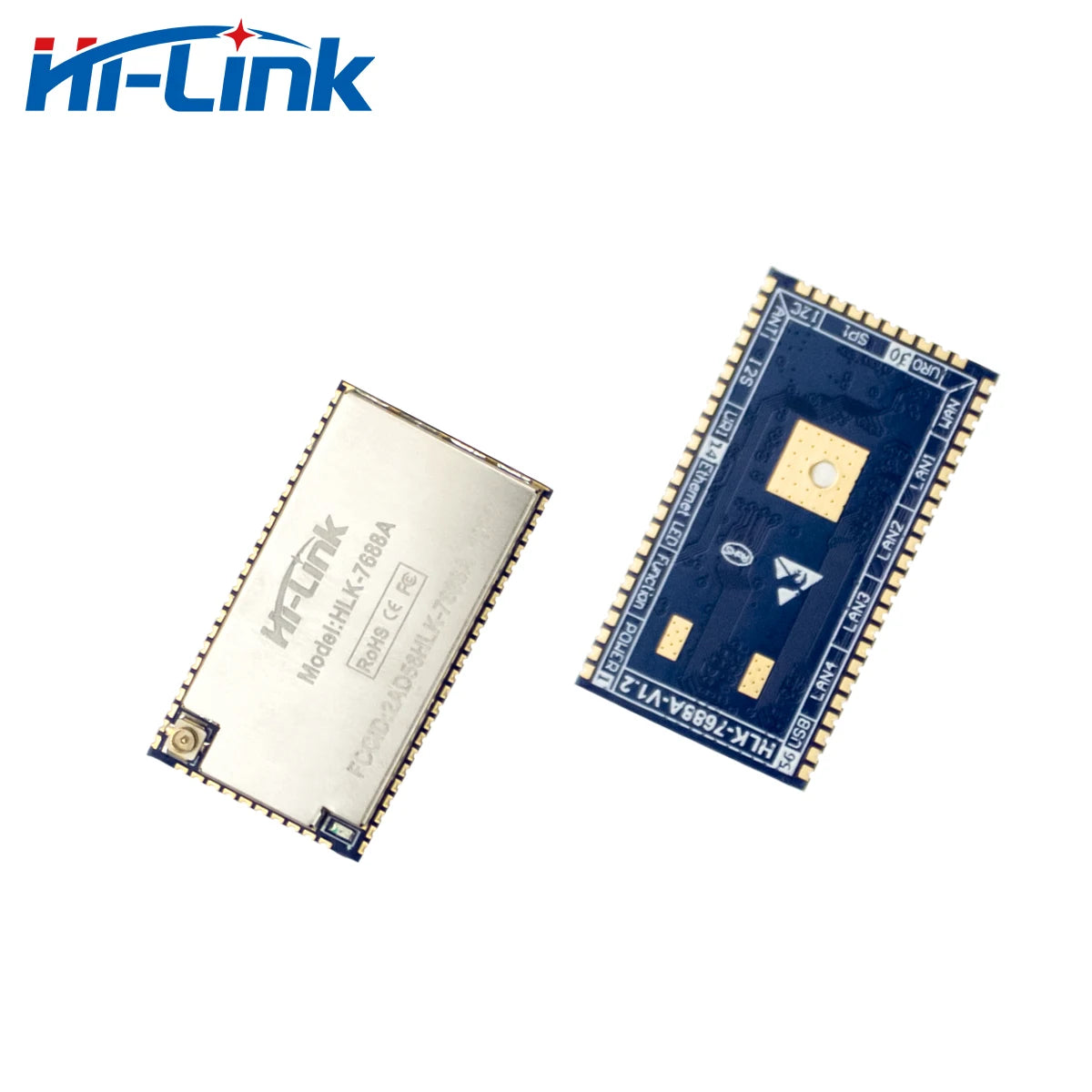

    HLK-MT7688A based on MT7688AN is a low cost and low power consumption IOT module developed by Hi-Link.

    The module is 802.11b/g/n Wi-Fi Solution optimized for highly integrated AP and consumer electronic devices,the module integrates all Wi-Fi functionality in a package friendly to low-cost PCB design, requiring only a 5V power supply, supports Linux, OpenWRT operating system and custom development.

Key Features:

1.150Mbps

2.Support AP,STA and AP,STA mixed

3.1 USB2.0 Host interface port

4.Support Linux 2.6.36 SDK, OpenWrt 3.10

5.Rich peripheral interfaces, SPI,I2C,I2S,PCM,UART,JTAG,GPIO




Basic Characteristics：

Please noted:

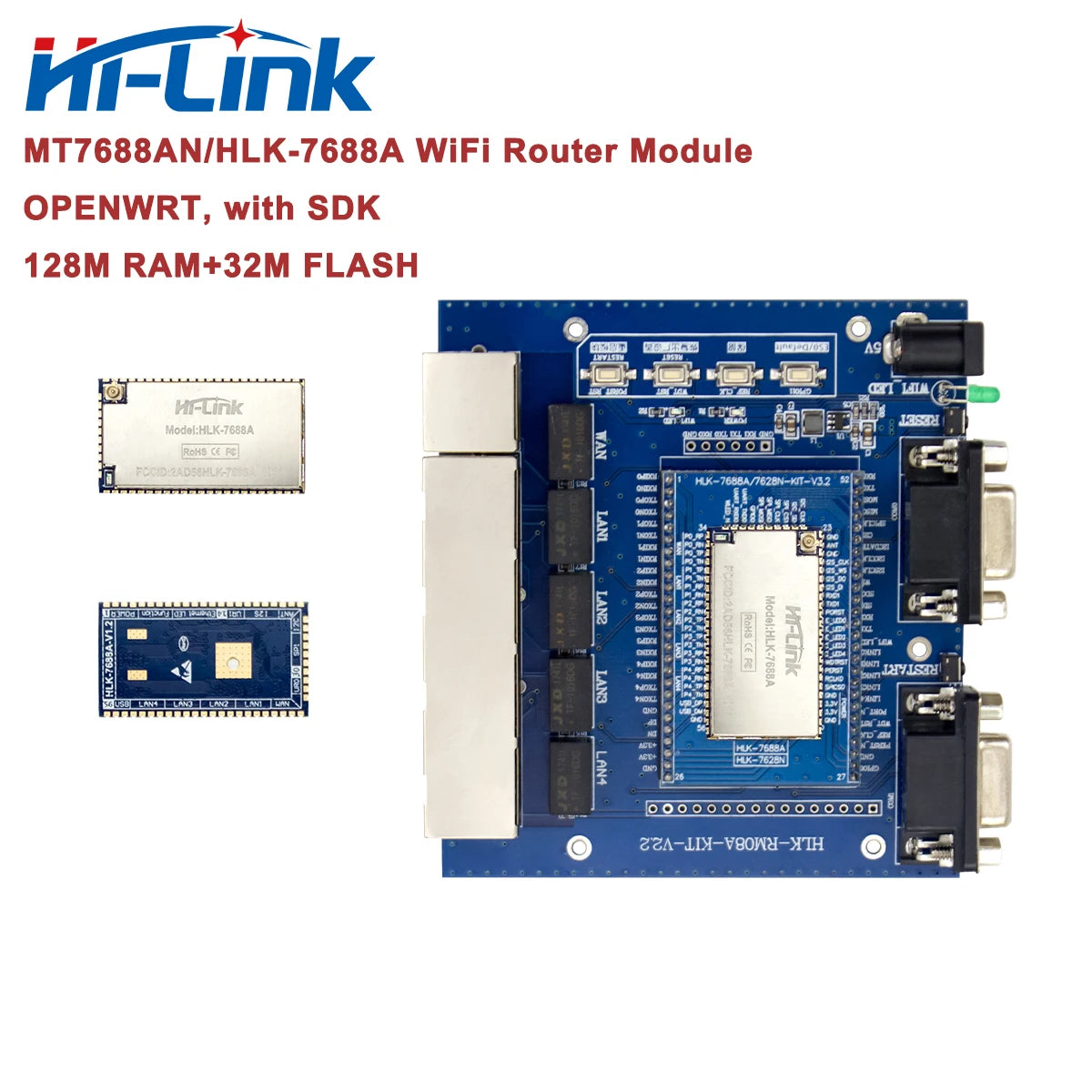

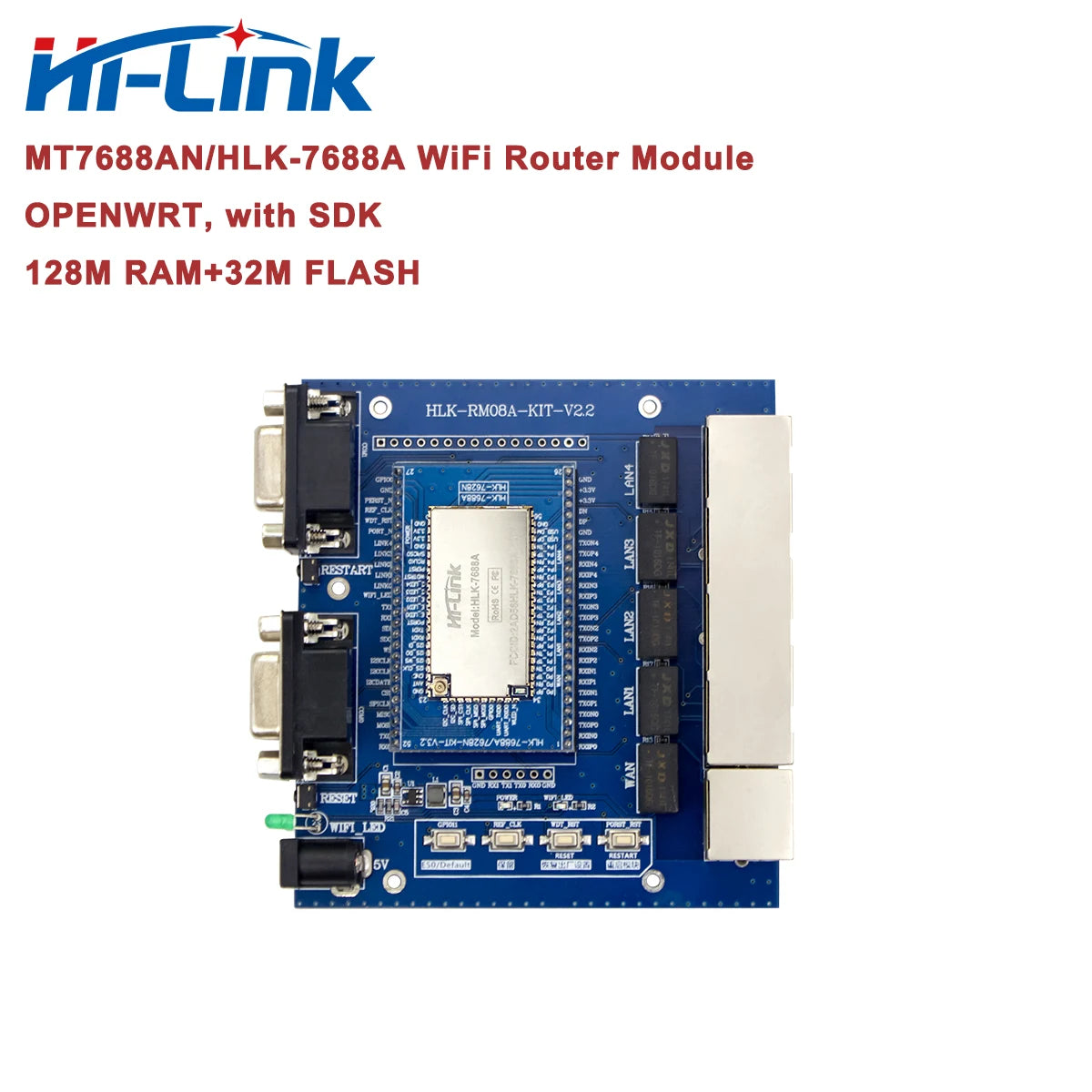

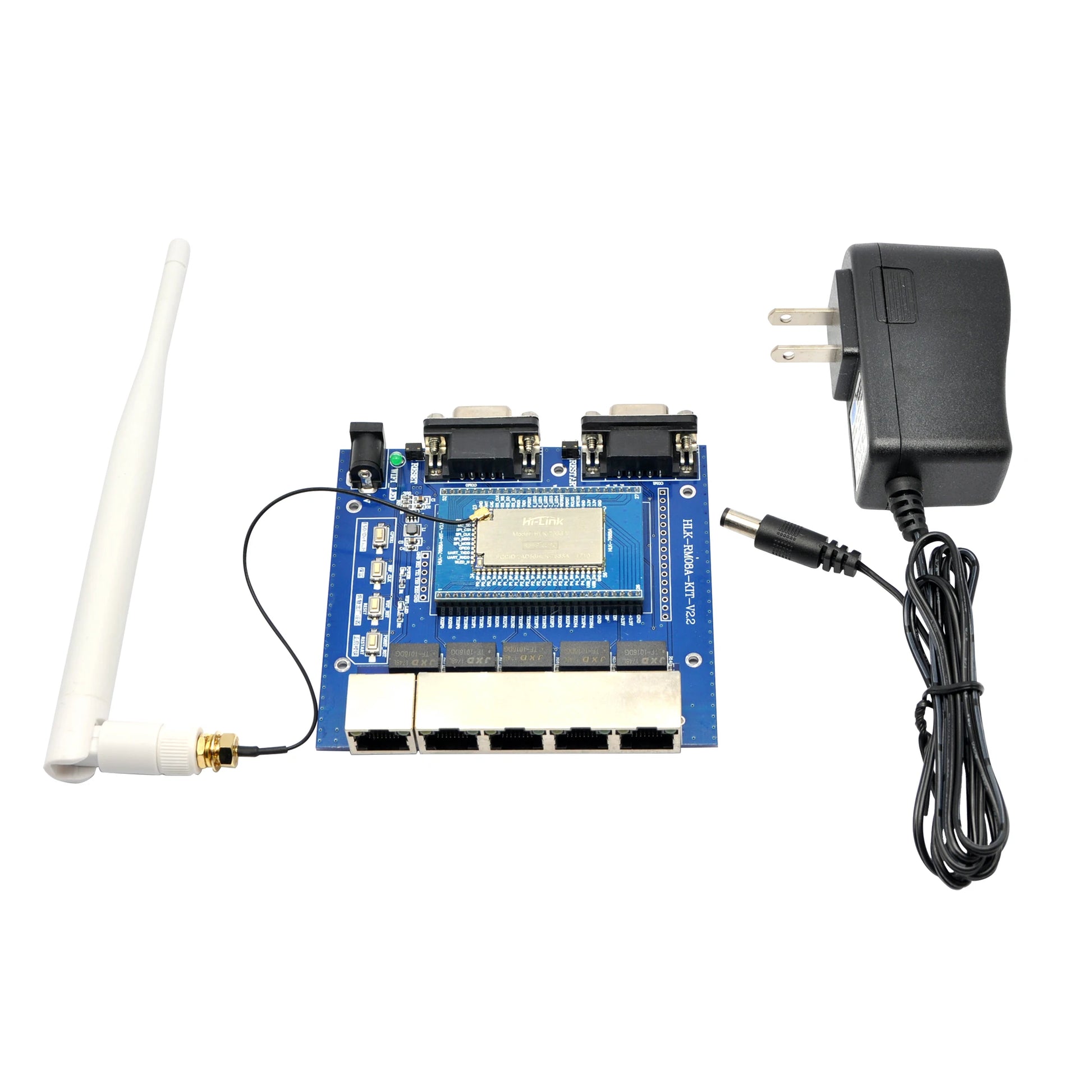

The product is HLK-7688A module kit (module with test board)

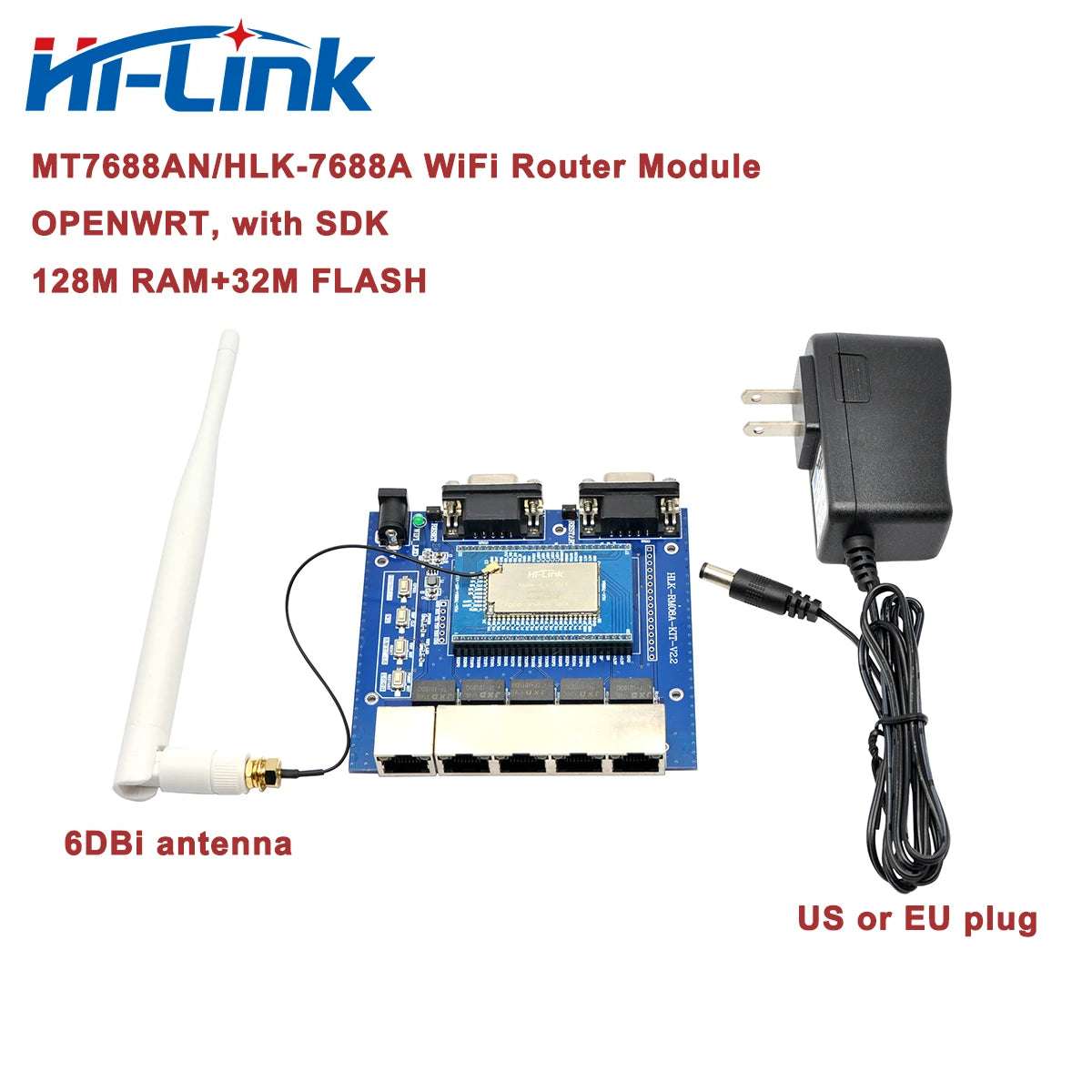

Includes:

* HLK-7688A module

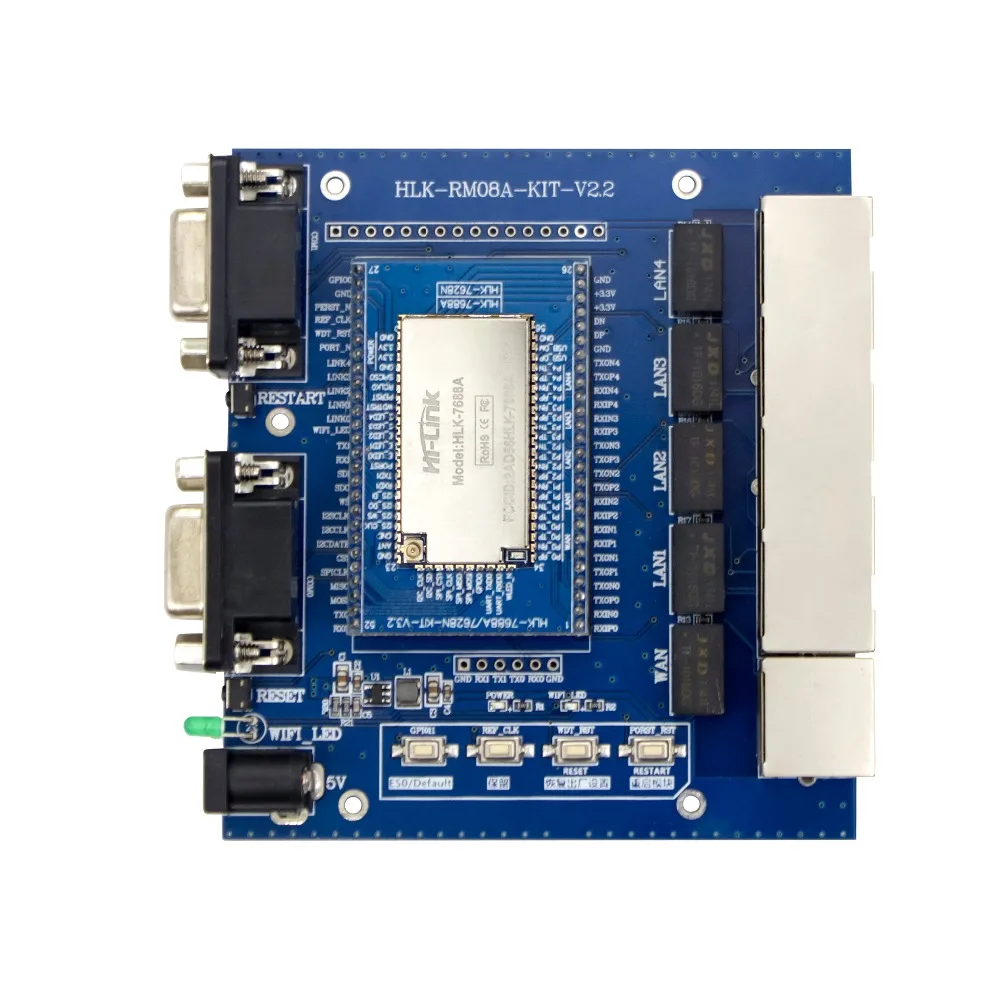

* Test board

* 5V 1A power supply

* 6DB Antenna

* TX-15 Connection wire

We also get similar module HLK-7628N, refer to the link: https://www.aliexpress.com/item/4000960474099.html?spm=5261.ProductManageOnline.0.0.38204edfPjN6Bk

The source code please refer to the link for developed.

https://drive.google.com/drive/folders/1uQeWLtkLBnHpg_ZavCNENGiJz0IyoLmK?usp=sharing
