Product Highlights
This is ESP32 Bruce is an Open-Source firmware based on ESP32 hardware, specifically designed for Red Team operations in the field of network security, providing a range of offensive security testing capabilities. Its main uses include conducting penetration testing and security assessments for various wireless communication methods.
Use the CYD Bruce you can unlock Flipper-Zero-like features on the ESP32 2432S028 device.
This board flashed the ESP32-Bruce 1.10.2 firmware on the Cheap Yellow Display, offering powerful WiFi and Bluetooth testing features on an affordable and accessible hardware platform. With the CYD Bruce, you can easily work with WiFi, BLE, Sub-GHz module ( CC1101 ), NFC ( PN532 ), GPS ( ATGM336H / NEO-6M ), IR and more, this combination offers a powerful platform for exploration.

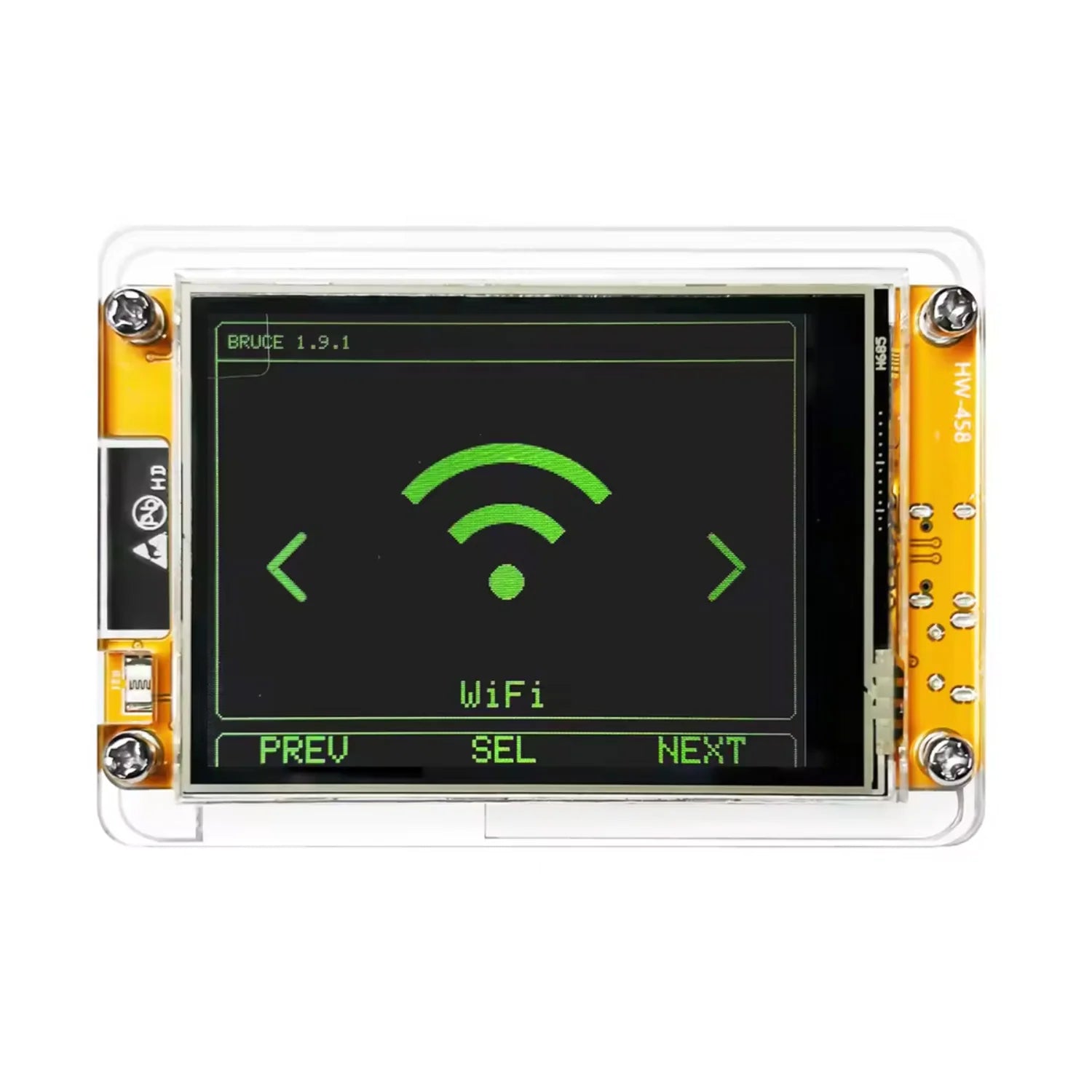

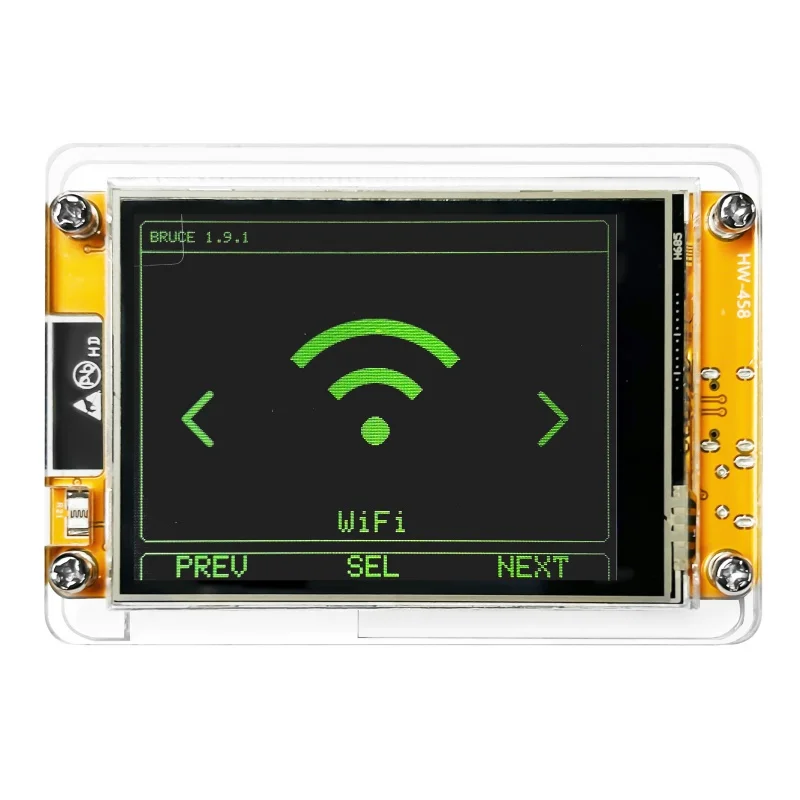

WiFi attack:
Connect to the target WiFi network.
Create WiFi hotspots for trapping or man in the middle attacks.
Forcefully disconnect the device from the WiFi network (to remove authentication attacks).
Sending forged WiFi beacon frames (Beacon attack) for deception or interference.

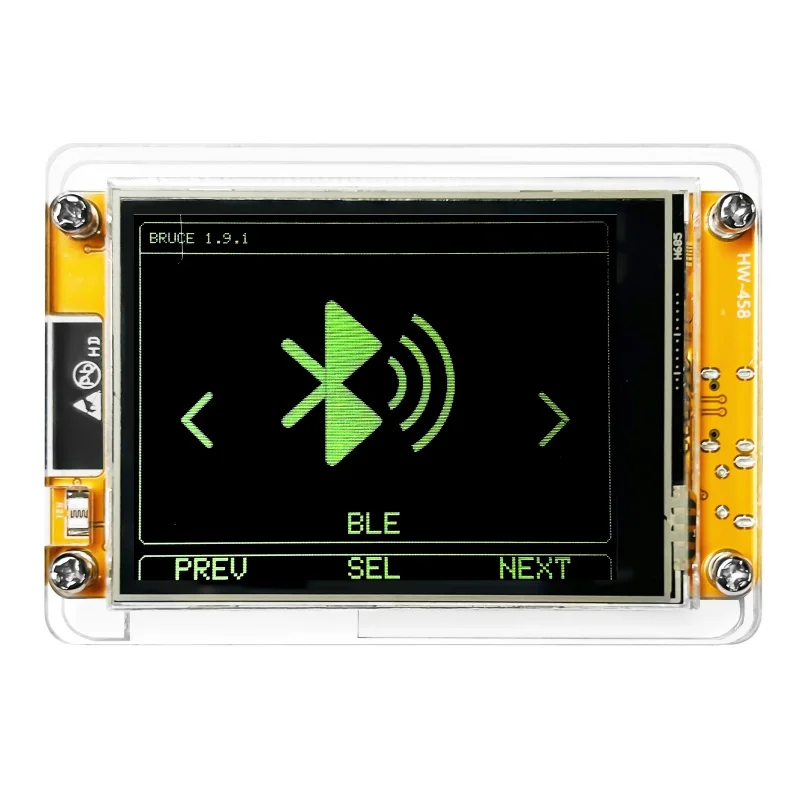

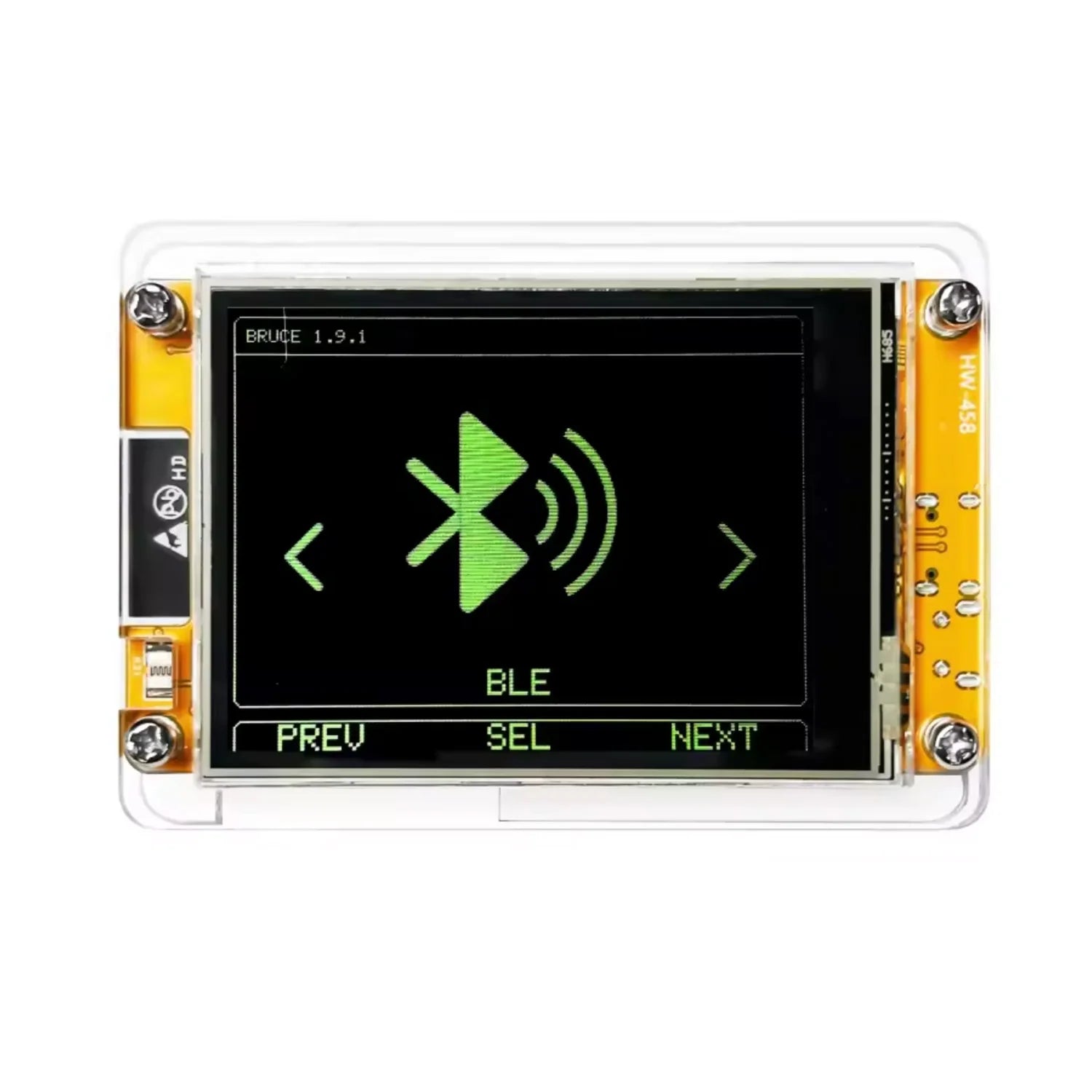

Bluetooth Low Energy (BLE) attack:
Scan BLE devices in the surrounding environment.
Simulate BLE devices, disguise as target devices for deception or launching attacks.
Radio frequency (RF) attack:
Perform RF signal scanning.
Copy RF signals (such as remote control signals).
Interfere with specific RF frequencies.

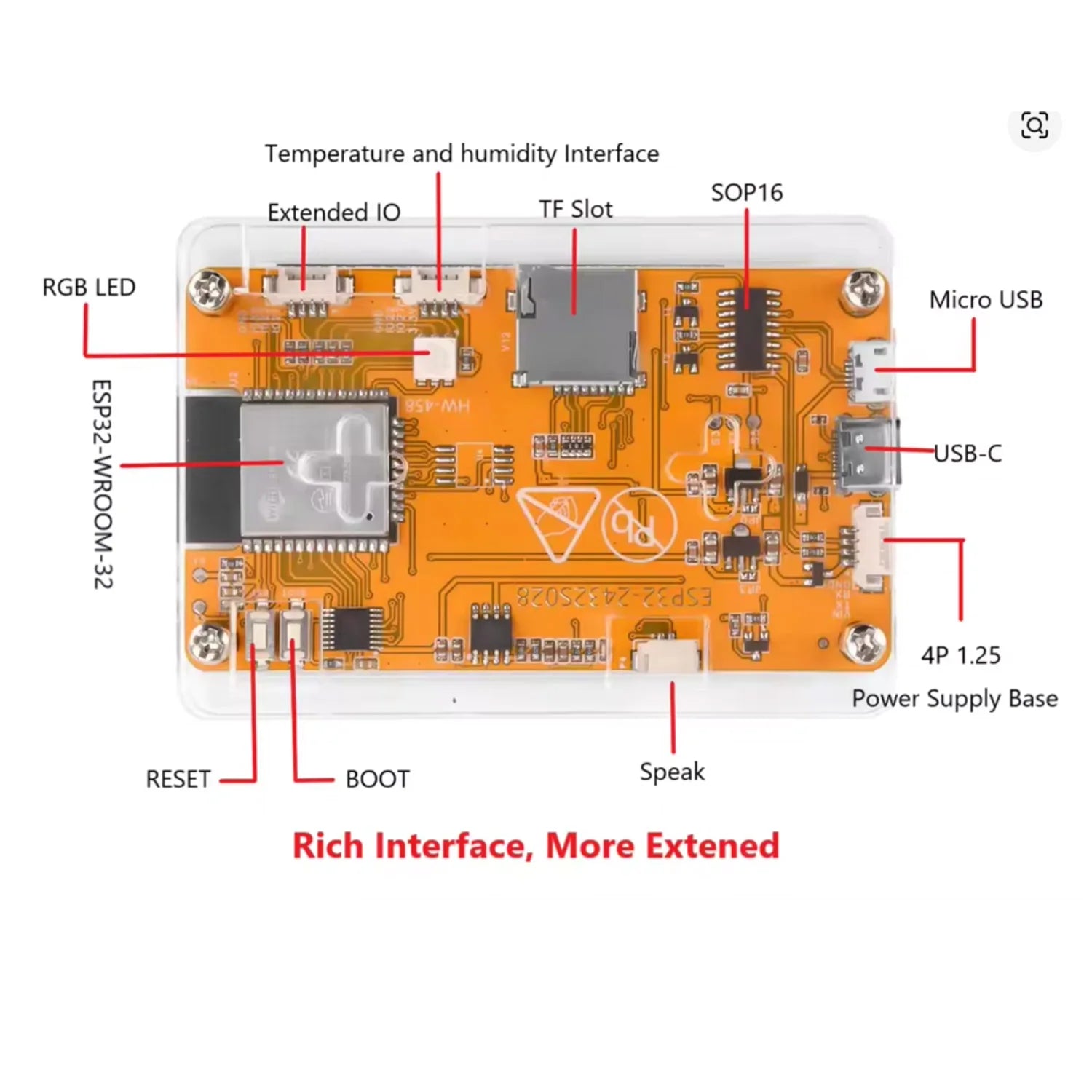

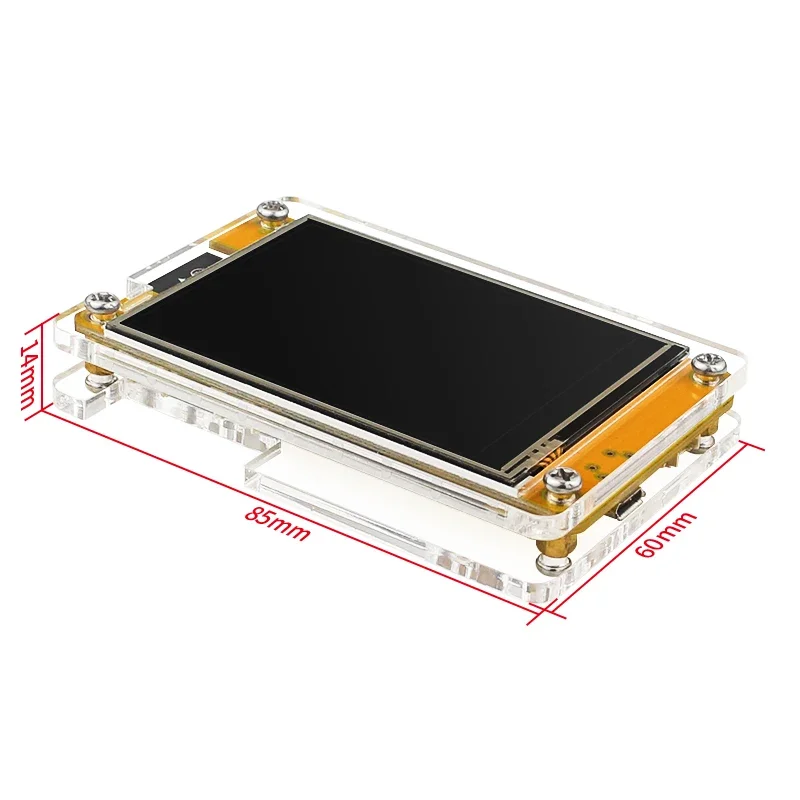

USB-C and Micro-USB Ports, Micro-SD card slot, acrylic case.
CYD(Cheap Yellow Display) with 2.8'', 240*380 touch screen, with driver chip ST7789.
To Power on plug it into a laptop, phone charger or powerbank.
This device functions with or without and SD card, but you won't be able to save your work without one.
Where to find more information about Bruce:
Bruce Firmware Github: https://github.com/pr3y/Bruce
How to Connect All Multiple Modules to CYD - GPS, NFC, IR, RF, CC1101, NRF24 & Speaker Setup: https://www.youtube.com/watch?v=PrMbeogrfOo
Notice:
1. The Micro SD card (not included). which is required for some of the capabilities of marauder.
2. The use of this software for any illegal or unauthorized activities is strictly prohibited.

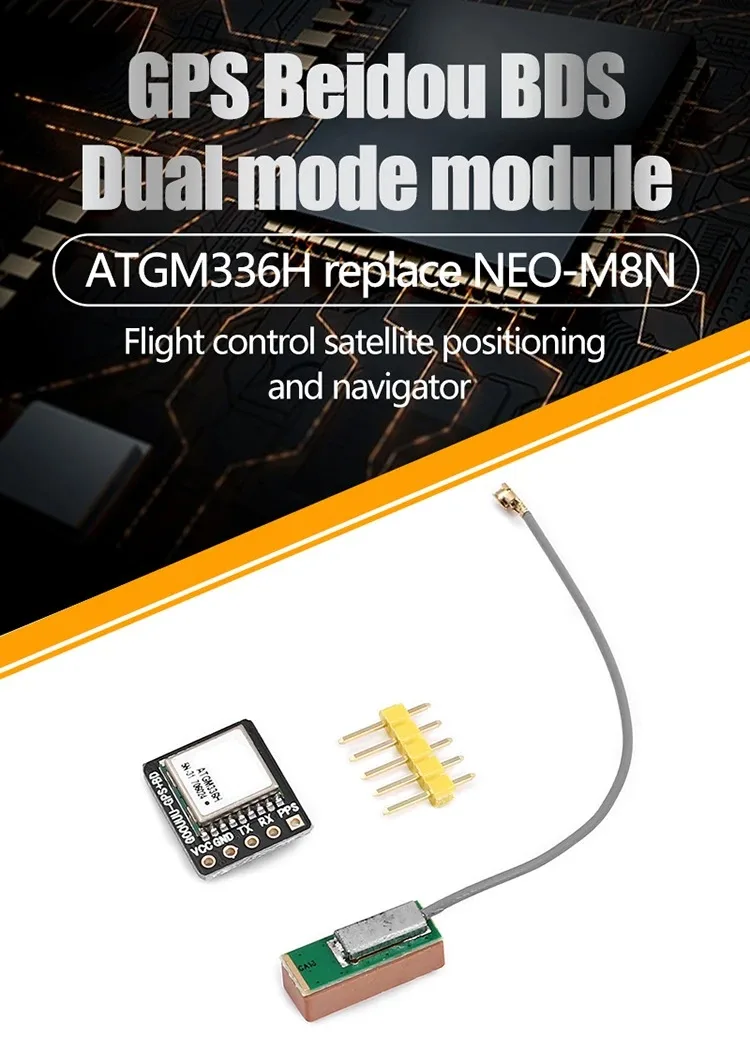

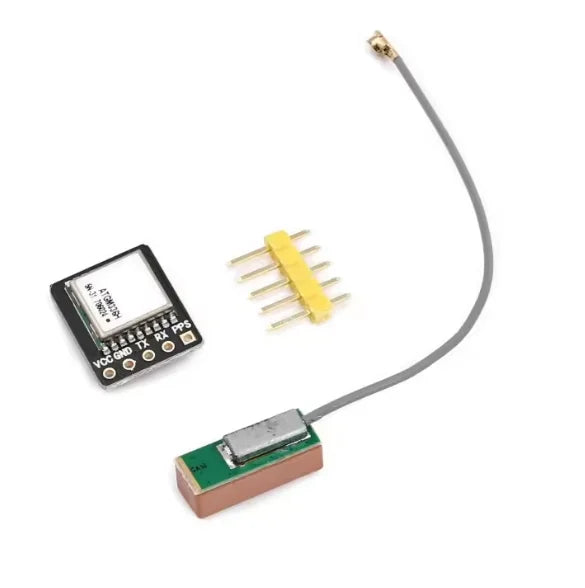

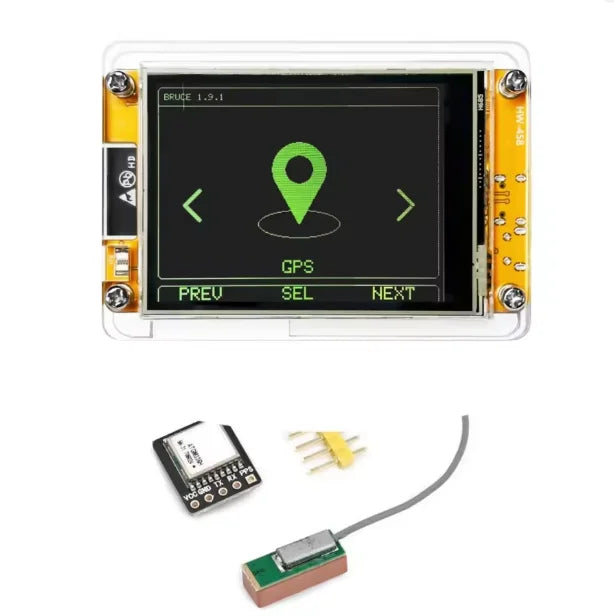

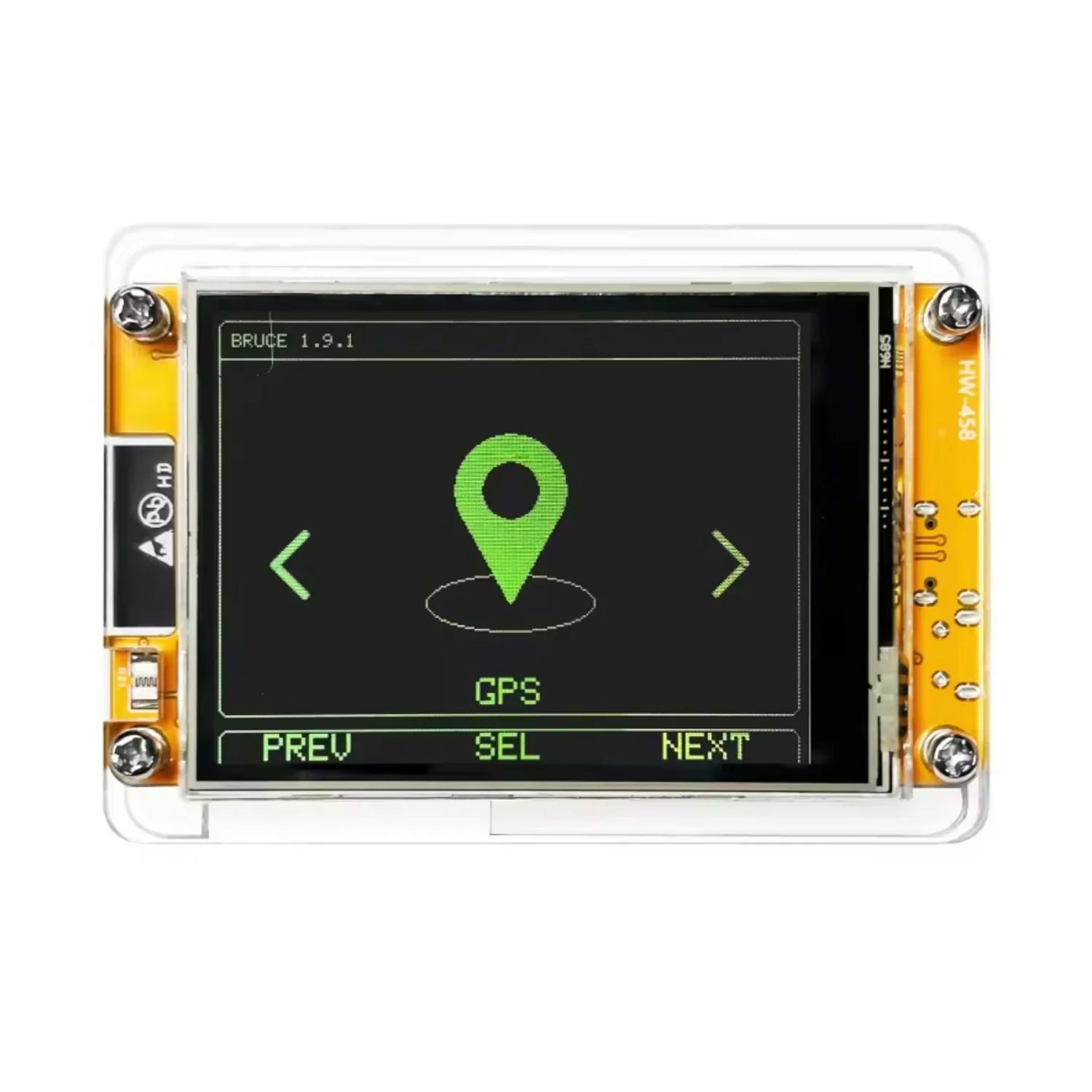

GPS
ESP32 Bruce with GNSS (ATGM336H)
CYD ATGM336H
VIN <----------> VCC
GND <----------> GND
TX <----------> TX
RX <-----------> RX

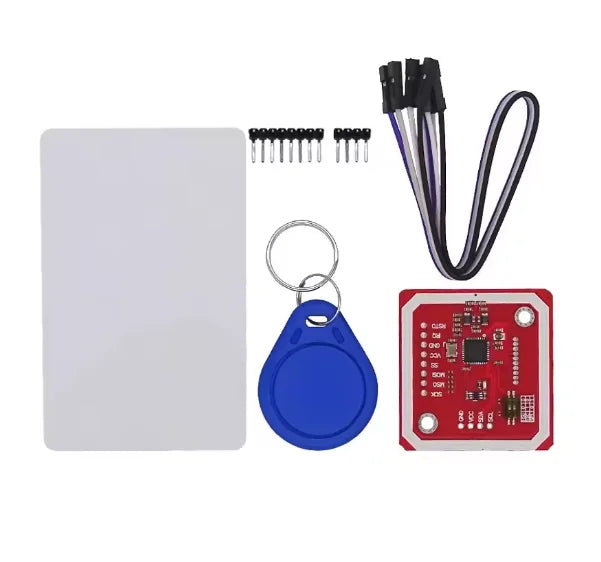

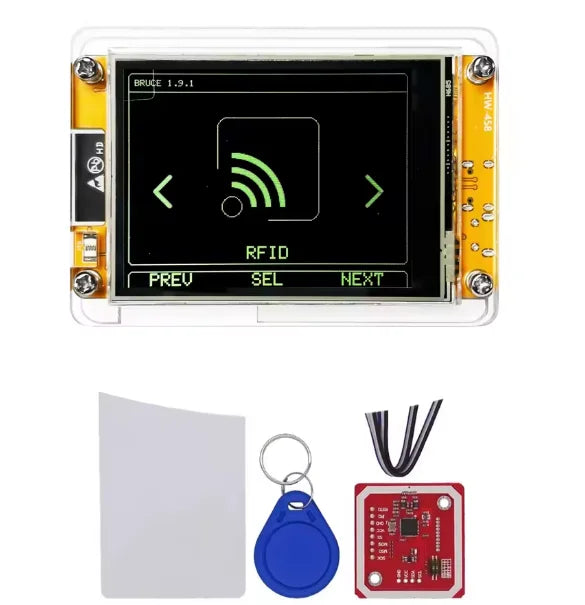

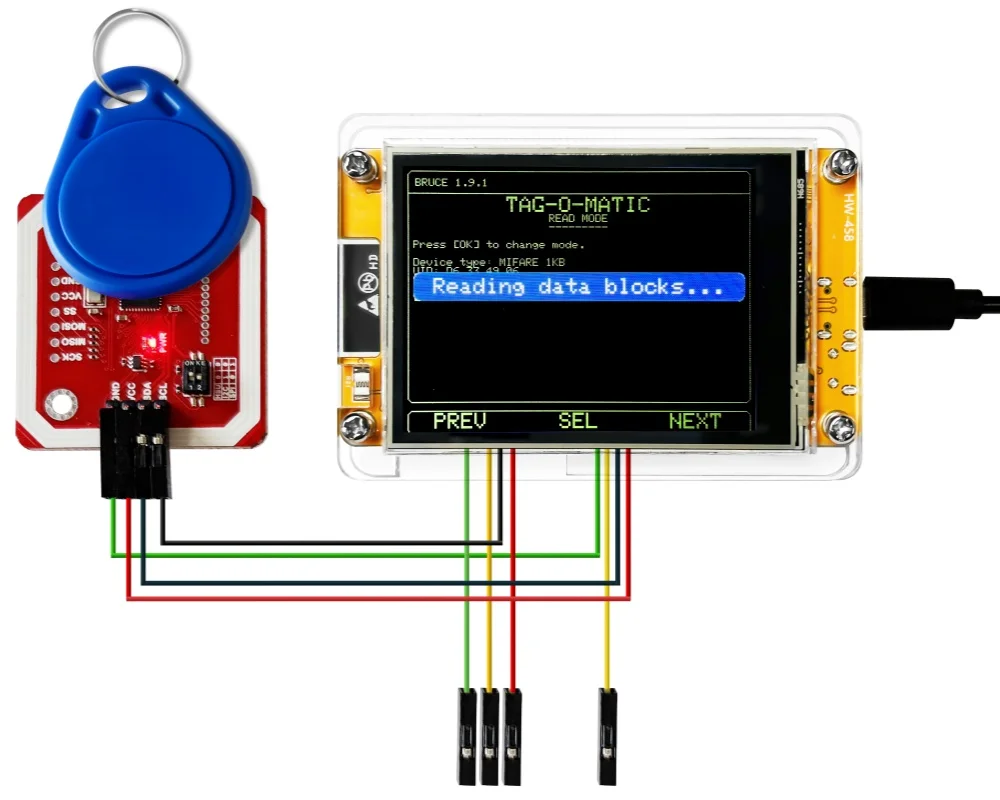

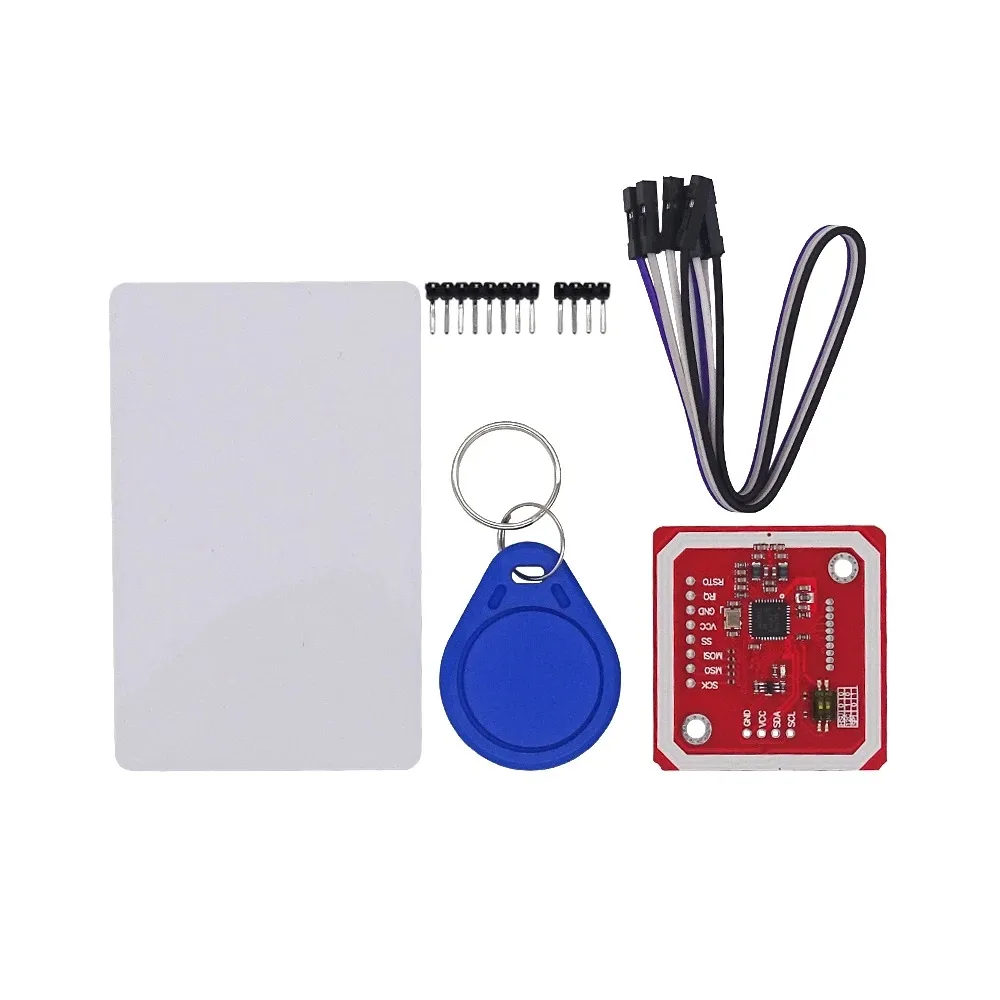

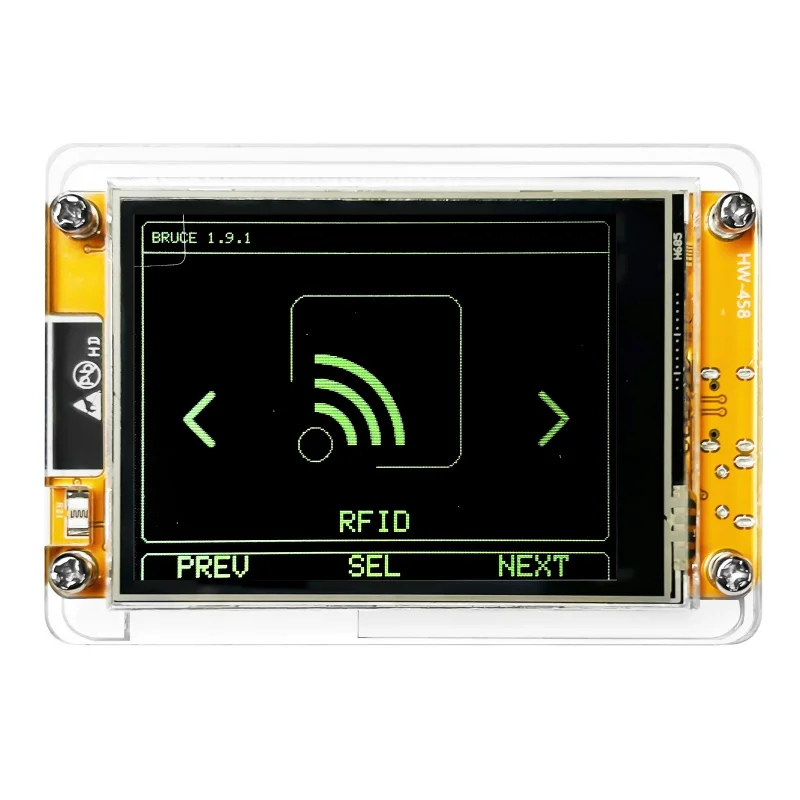

RFID & NFC

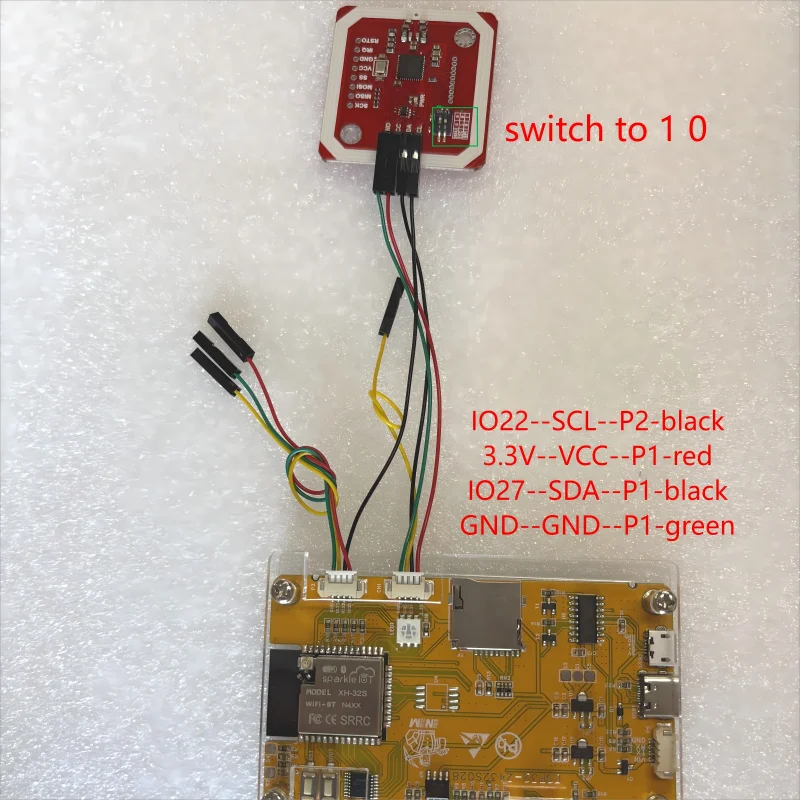

How to Connect NFC
Step 1: switch PN532 to mode " 1 0"
Step 2: Connect PN532 to CYD Bruce
Step 3: Change the RFID mode, PN532 I2C
Step 4: Read the NFC Card

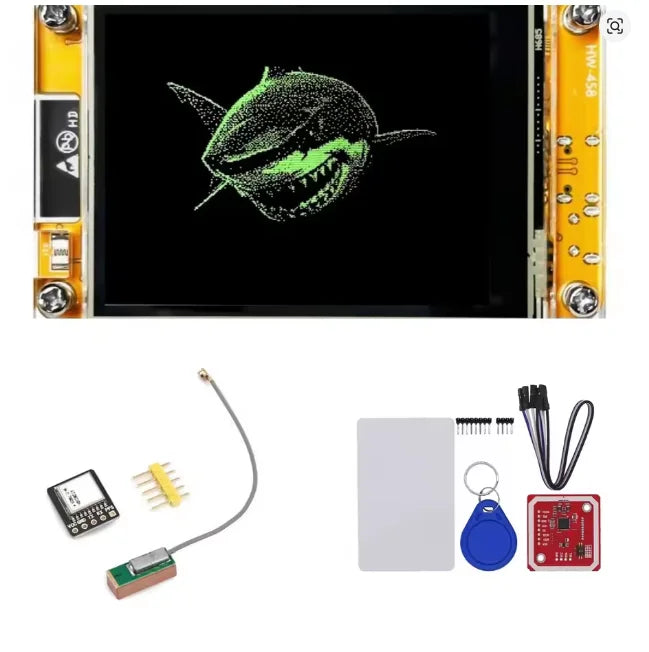

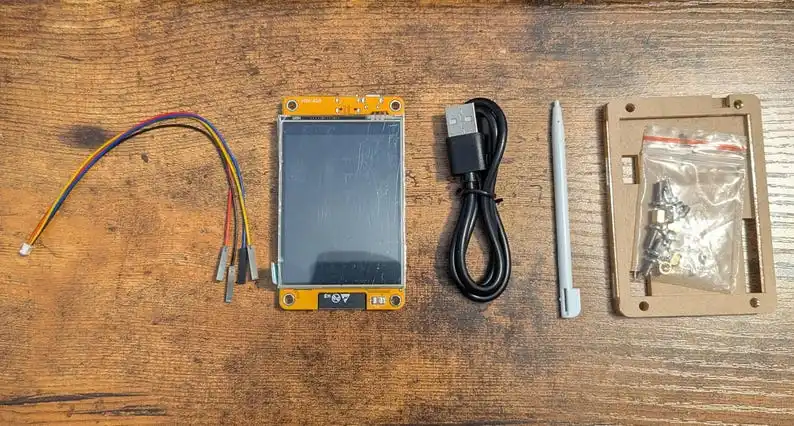

Packing List
