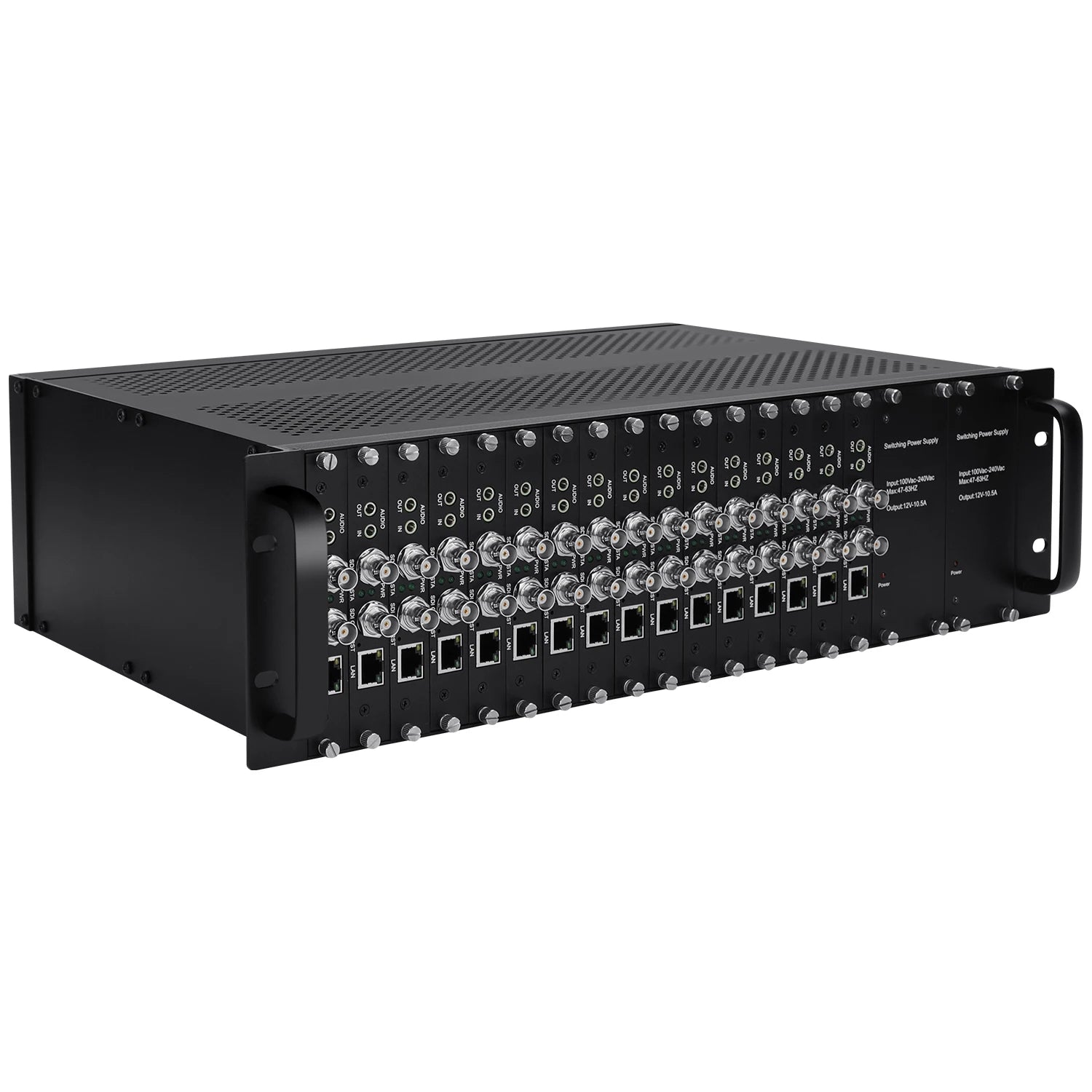

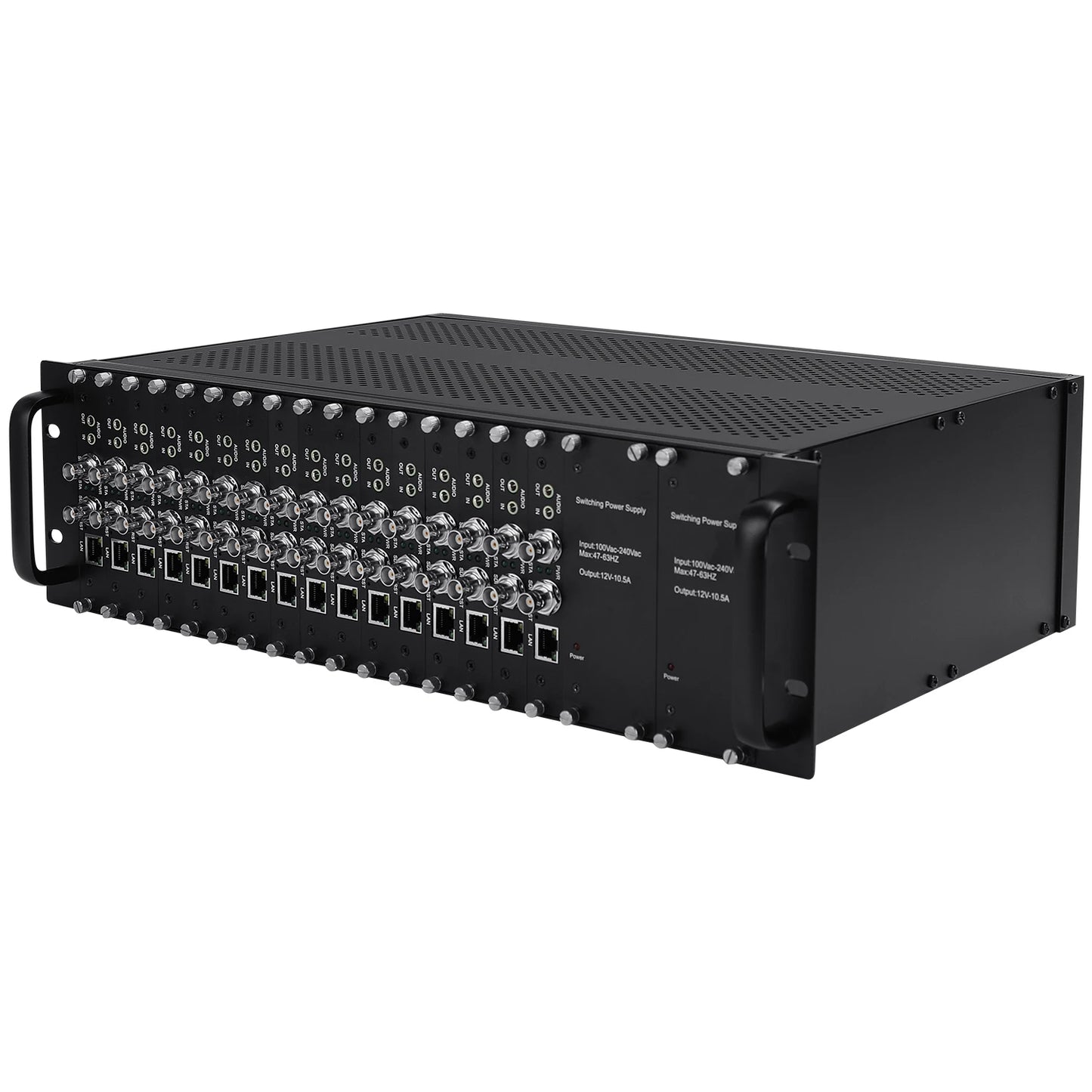

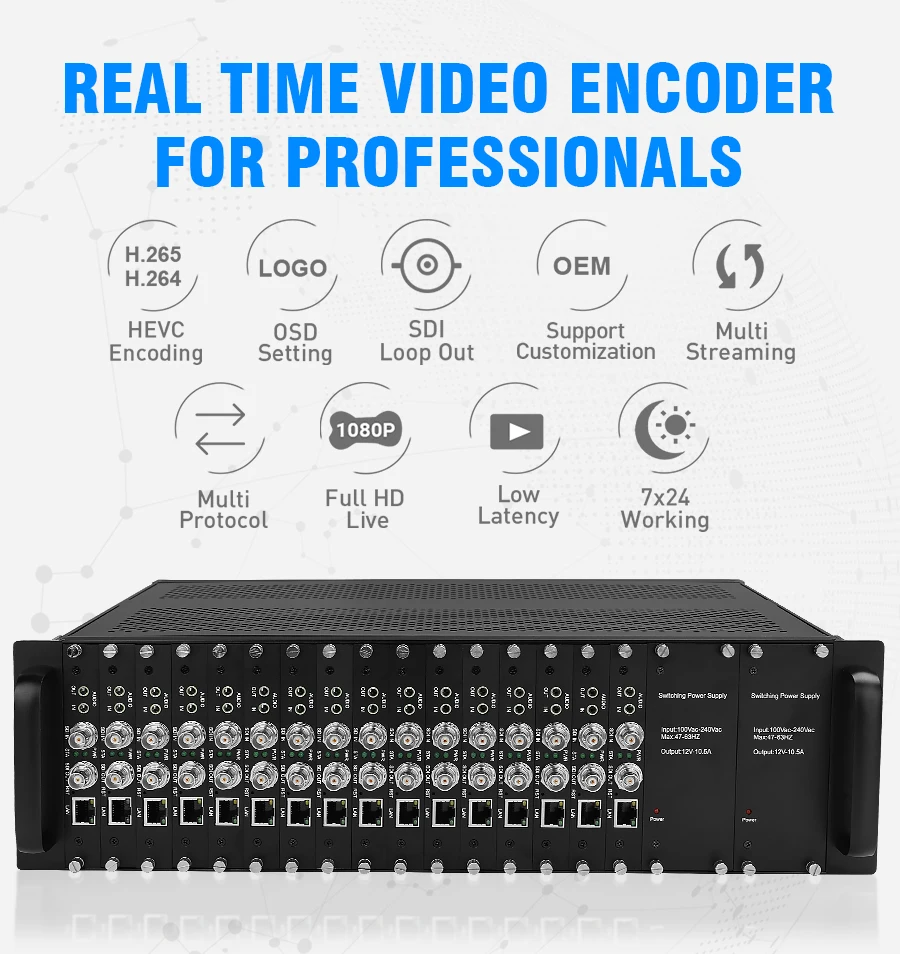

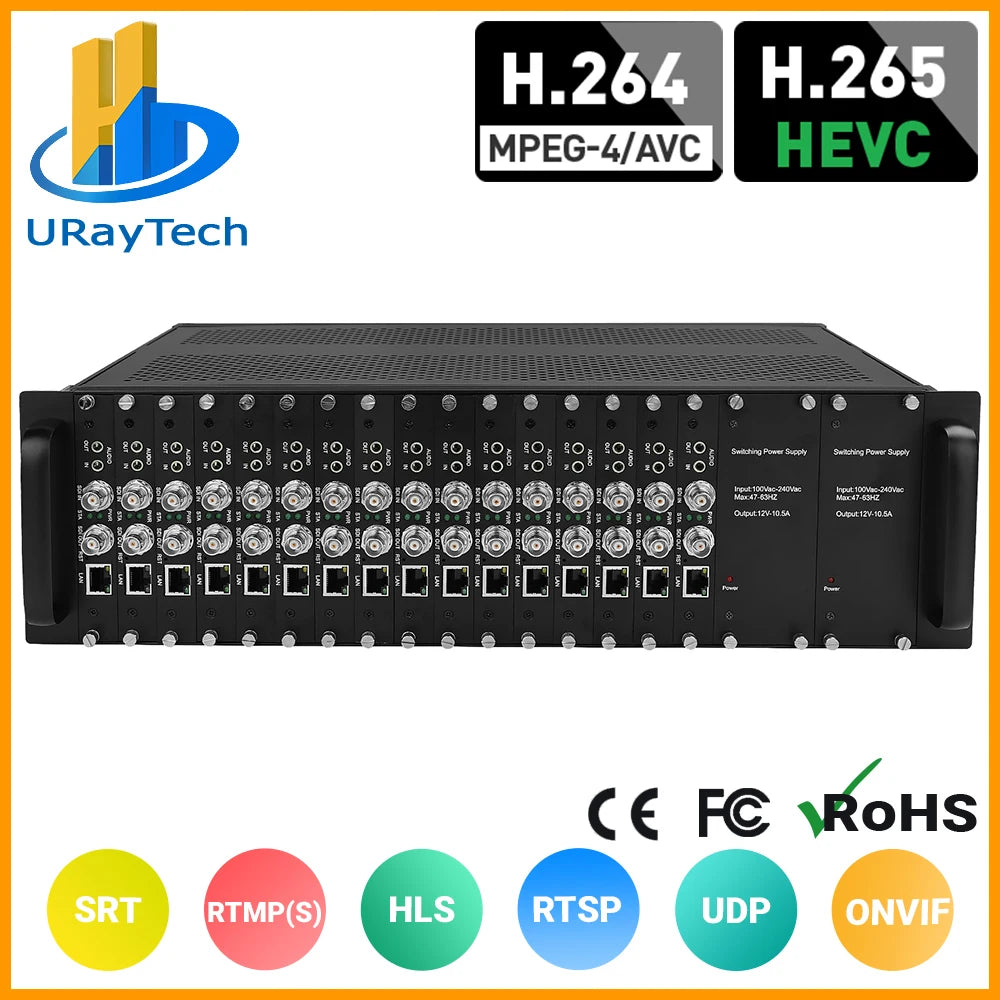

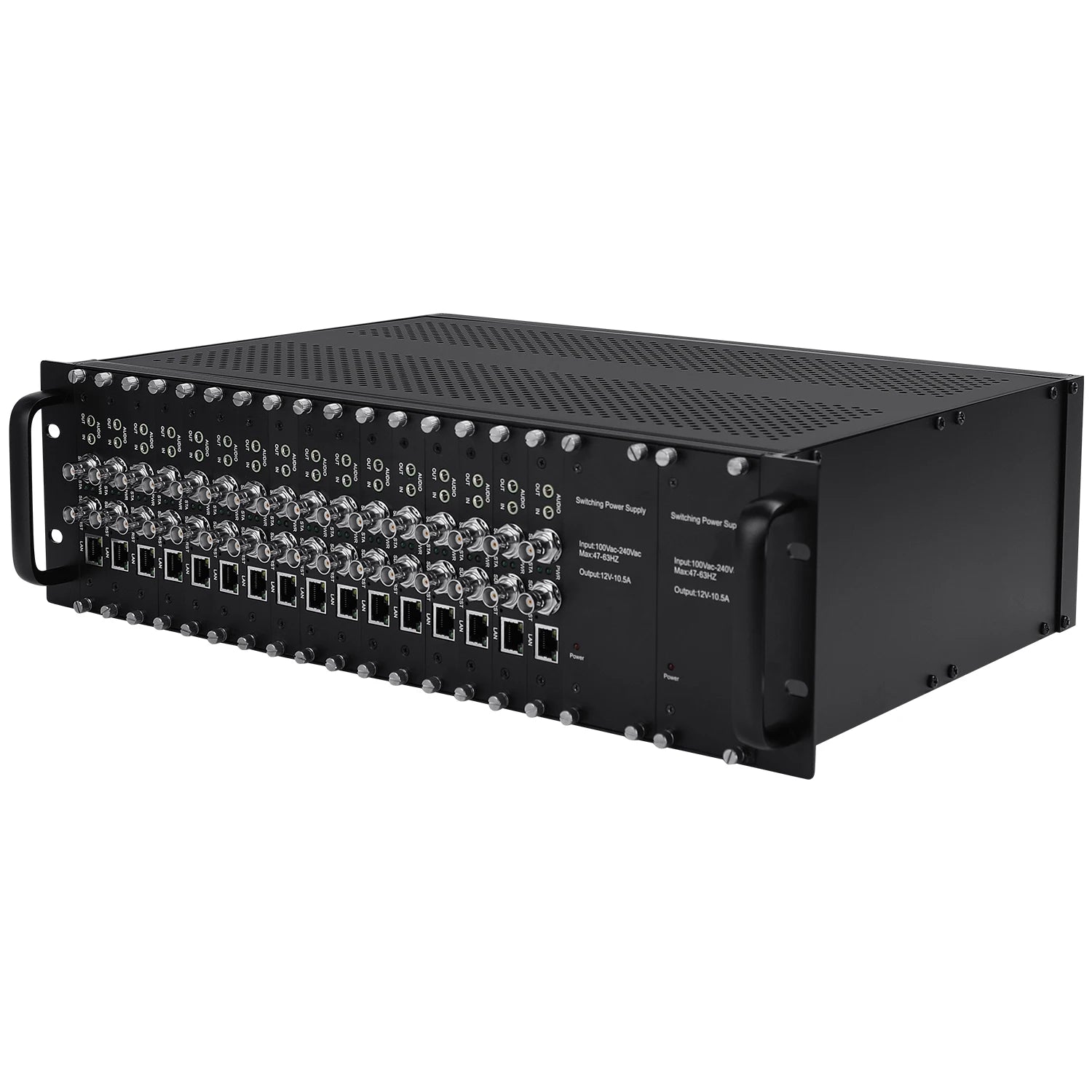

3U Rack 16 Channels SD HD 3G SDI to IP Video Encoder H.265 H.264 HD-SDI 3G-SDI Live Streaming Broadcast Encoder Transmitter

€3.798,99 EUR

~~€4.114,99 EUR~~ €3.798,99 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color HDMI In SDI In Encoding Board

Support HEVC /H.265, H.264 /AVC video encoding

Support AAC, MP3, G.711 audio encoding

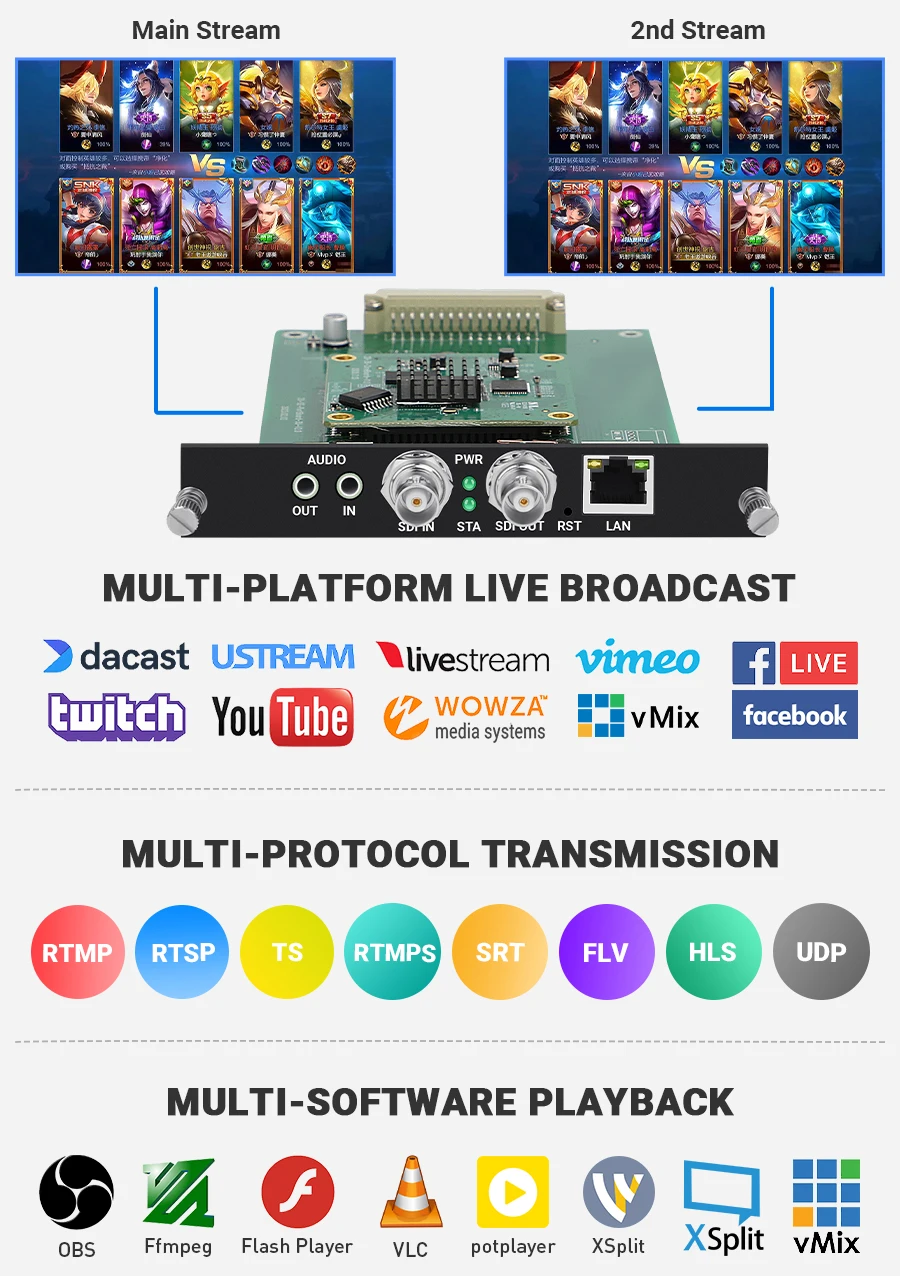

Support to live streaming on 2 live broadcast platforms simultaneously for each channel

2 streams output for each channel, support different protocol transmission for each stream

Support output video frame rate setting, max 60fps input and output

Support output video resolution setting, max 1920x1080P input and output

Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

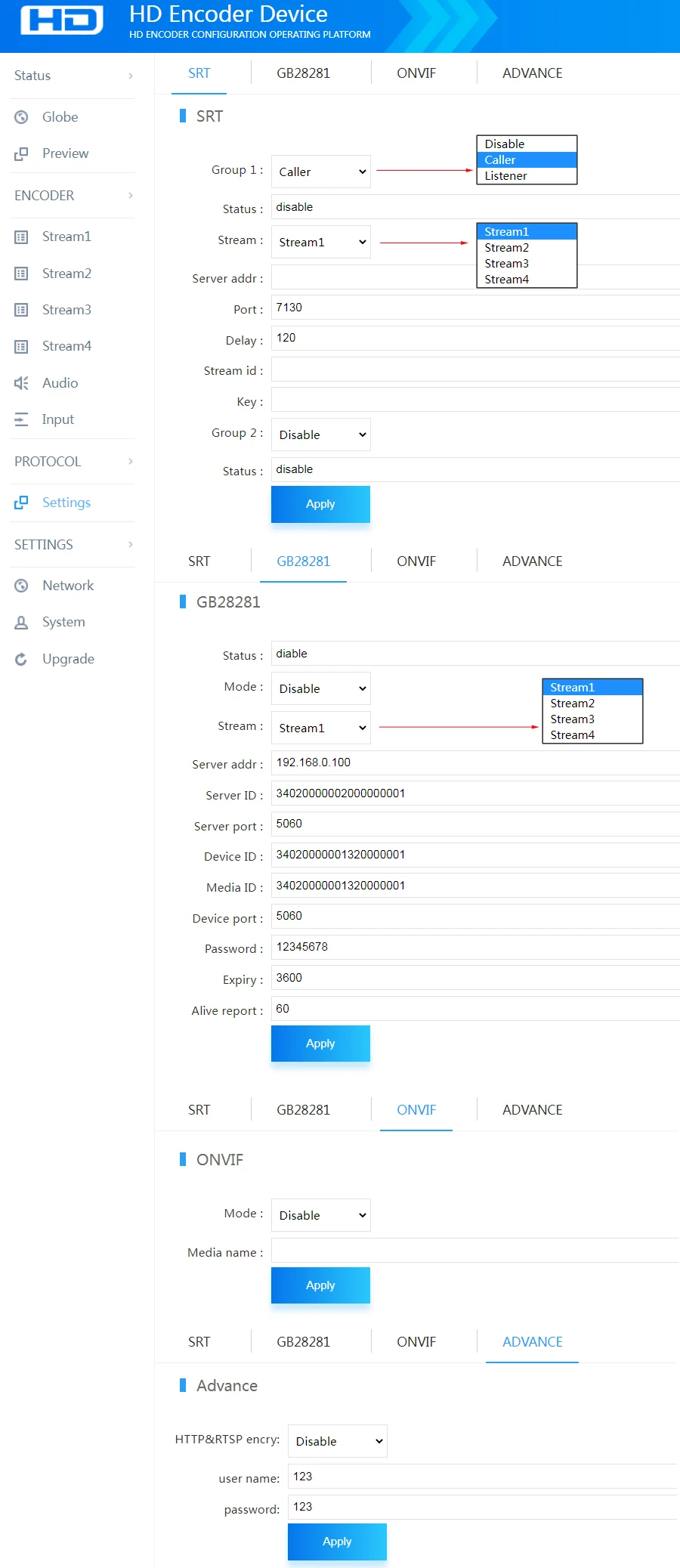

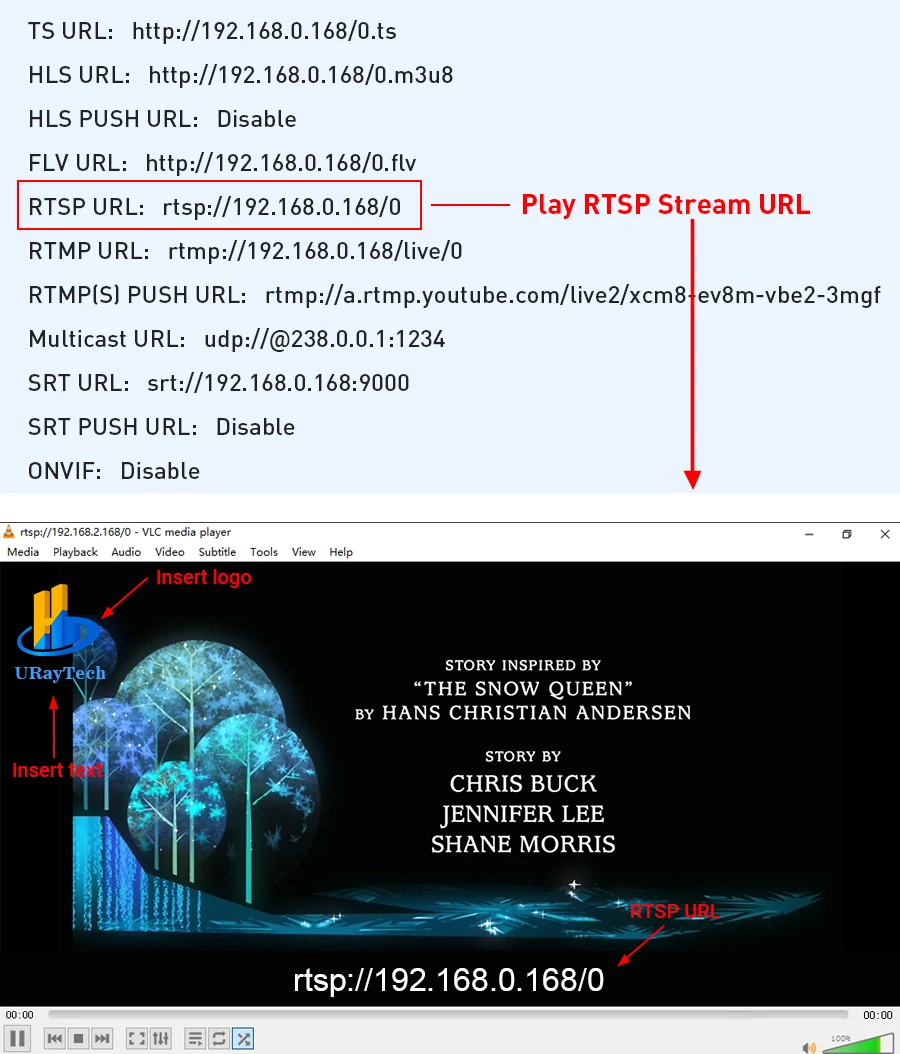

Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, FLV, ONVIF, Unitcast etc protocol

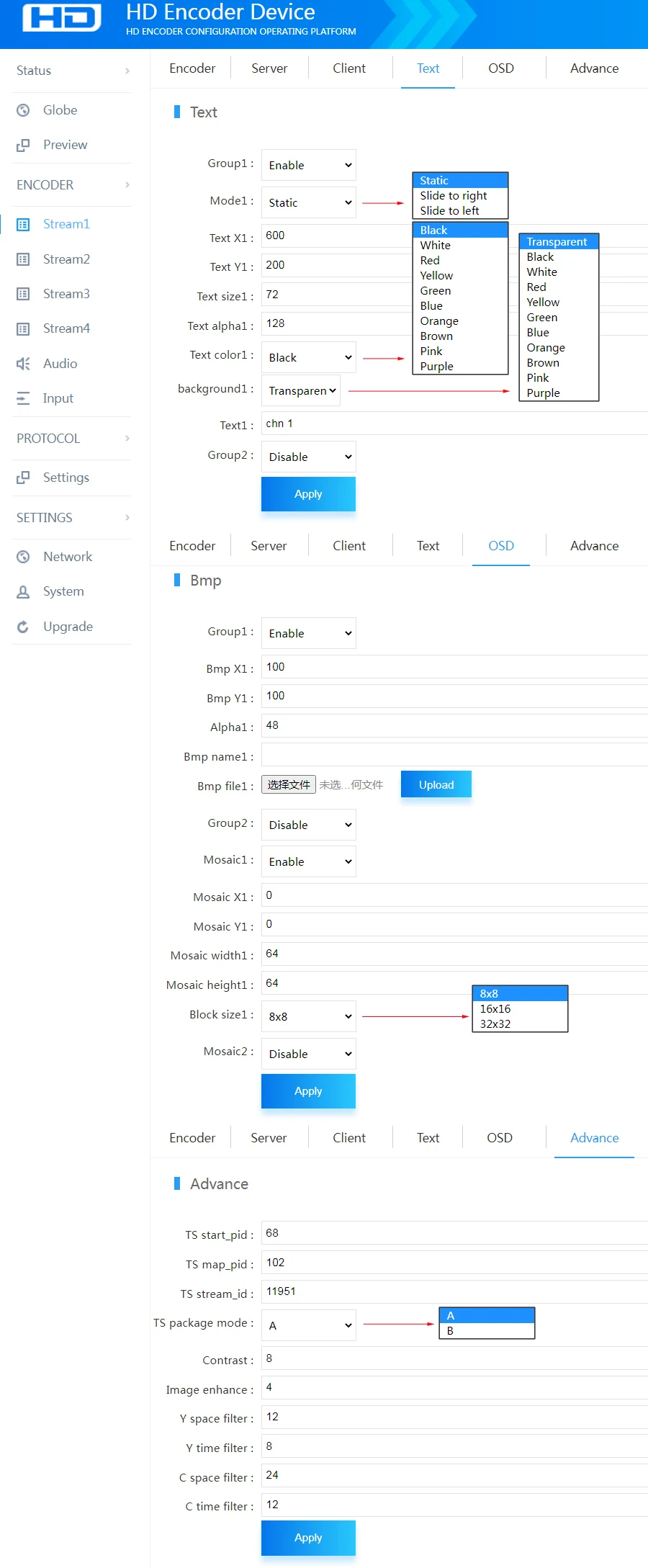

Support multiple on screen display settings, such as logo /text etc

Support customize the no signal image when there is no input signal

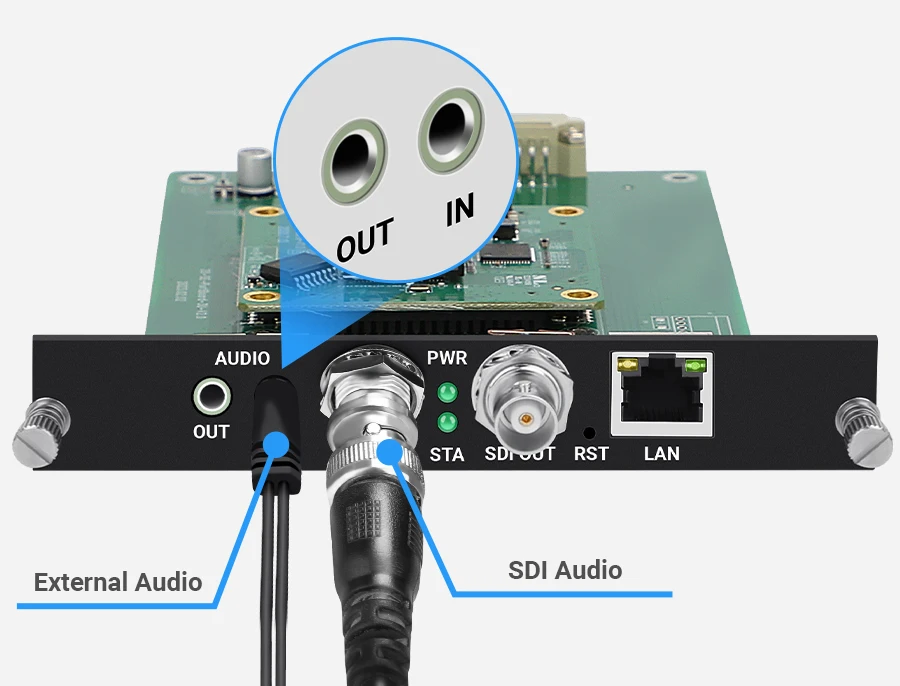

Support both SDI audio and external audio input simultaneously

Support to switch SDI audio or external audio as output audio at will

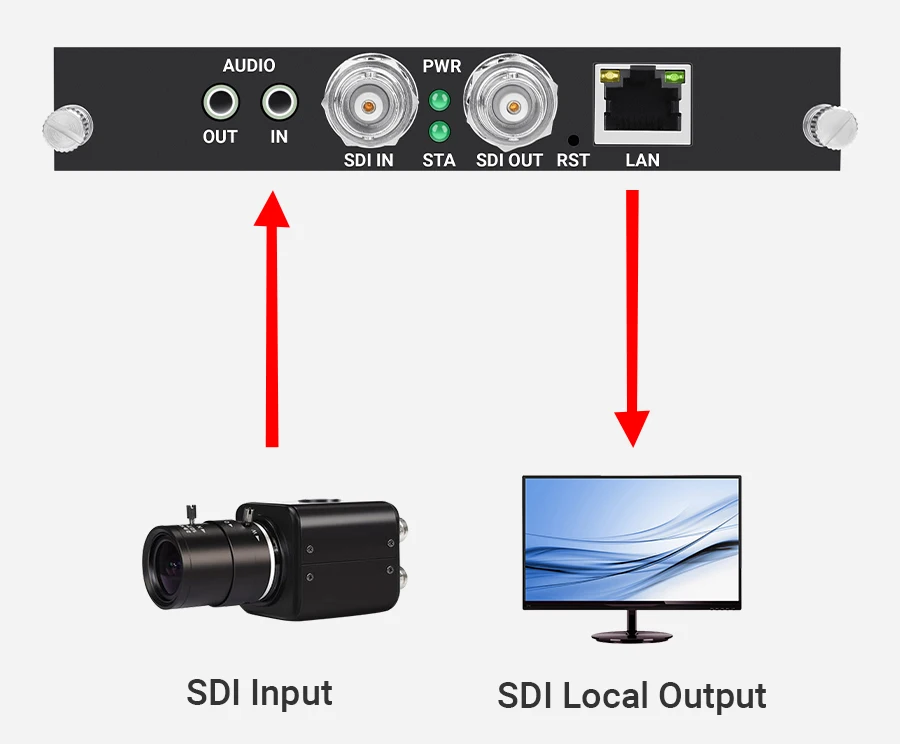

Support single-channel SDI signal local output for reuse

The looped out SDI signal is the same as the input SDI signal without any loss

Provide SDK /API /CGI for secondary development

Support logo printing /language /firmware /function etc customization

Model No.	USE265-16L-3U
Video
Input Video	16 x SD /HD /3G SDI
Input Resolution	Max 1920x1080 resolution, max 60fps frame rate
Video Encoding	HEVC /H.265, MPEG-4 /H.264 AVC
Encoding Levels	H,265 main profile; H.264 high /main /baseline profile
Video Bitrate	Adjustable From 16kbit /s to 12mbit /s for each channel
Bitrate Control	CBR, VBR
Output Resolution	It is adjustable, max 1920x1080P /60fps
Video Pre-processing	De-interlacing, noise reducing, sharpening etc
Audio
Input Audio	SDI embedded audio or external stereo audio(3.5mm jack)
Output Audio	Support to switch SDI audio or external audio at will
Sampling Rate	44.1KHz, 48KHz
Bitrate Control	Adjustable from 48000~320000

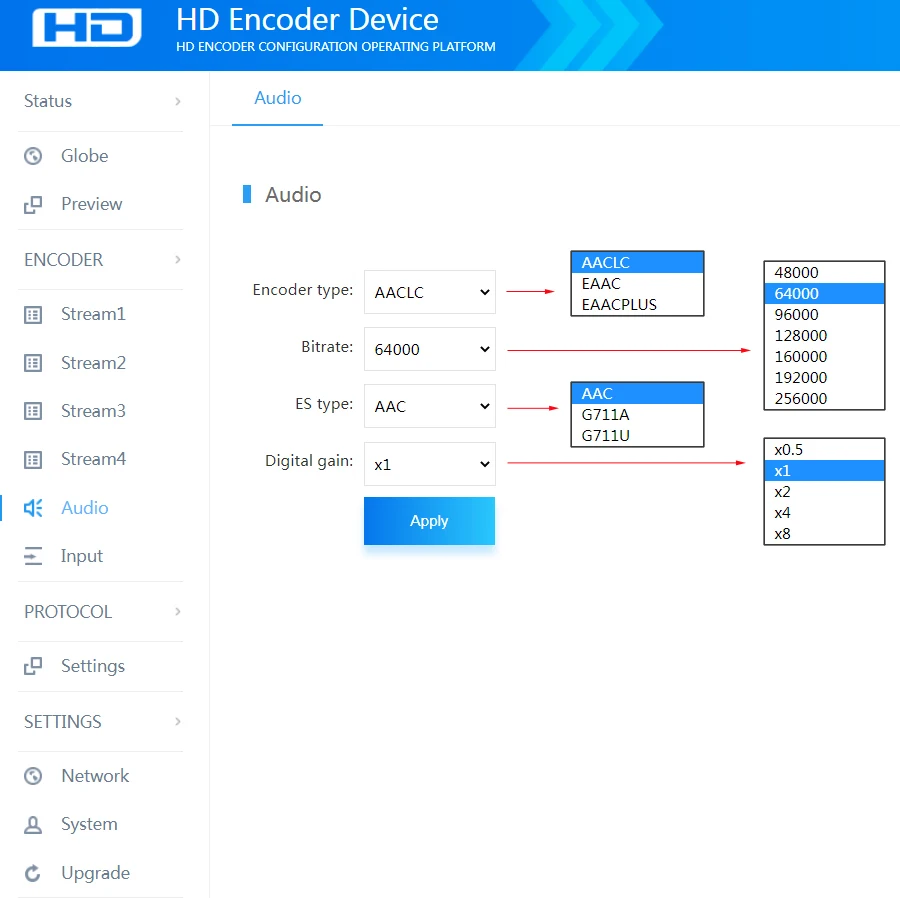

Audio Encoding	AAC, MP3, G.711
Network
Interface	16 x Ethernet port(1000 BASE-T)
Streaming Protocol	HTTP, SRT, RTSP, RTMP(S), HLS(M3U8), ONVIF, UDP, RTP, FLV, Unitcast

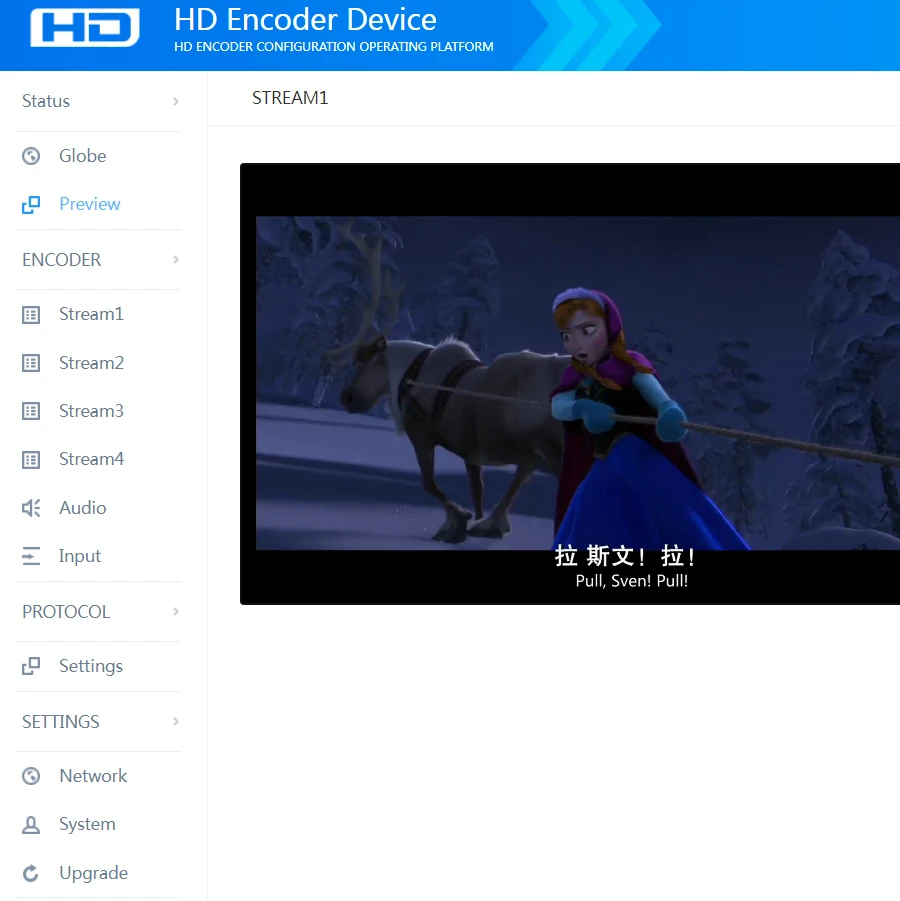

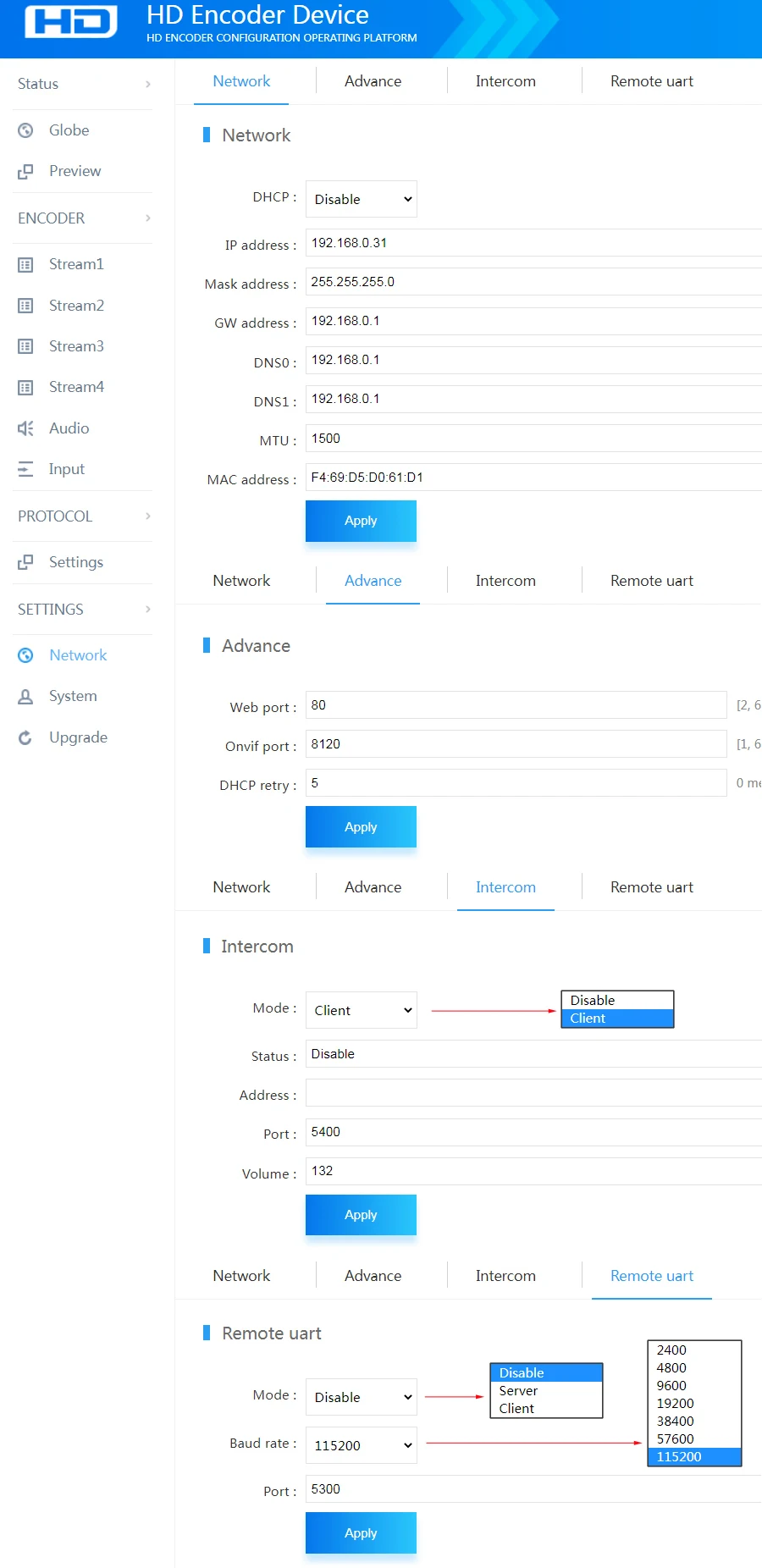

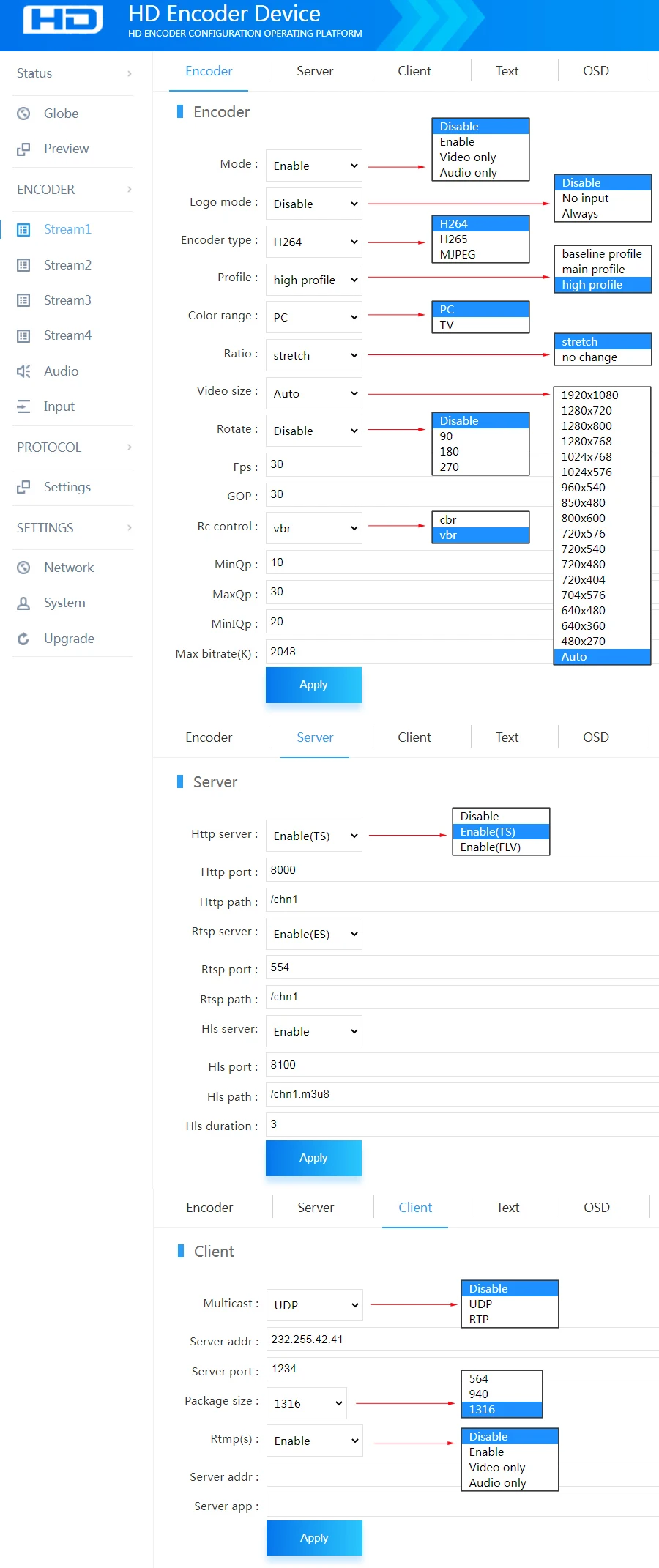

Control Panel	Webpage UI(language customizable)

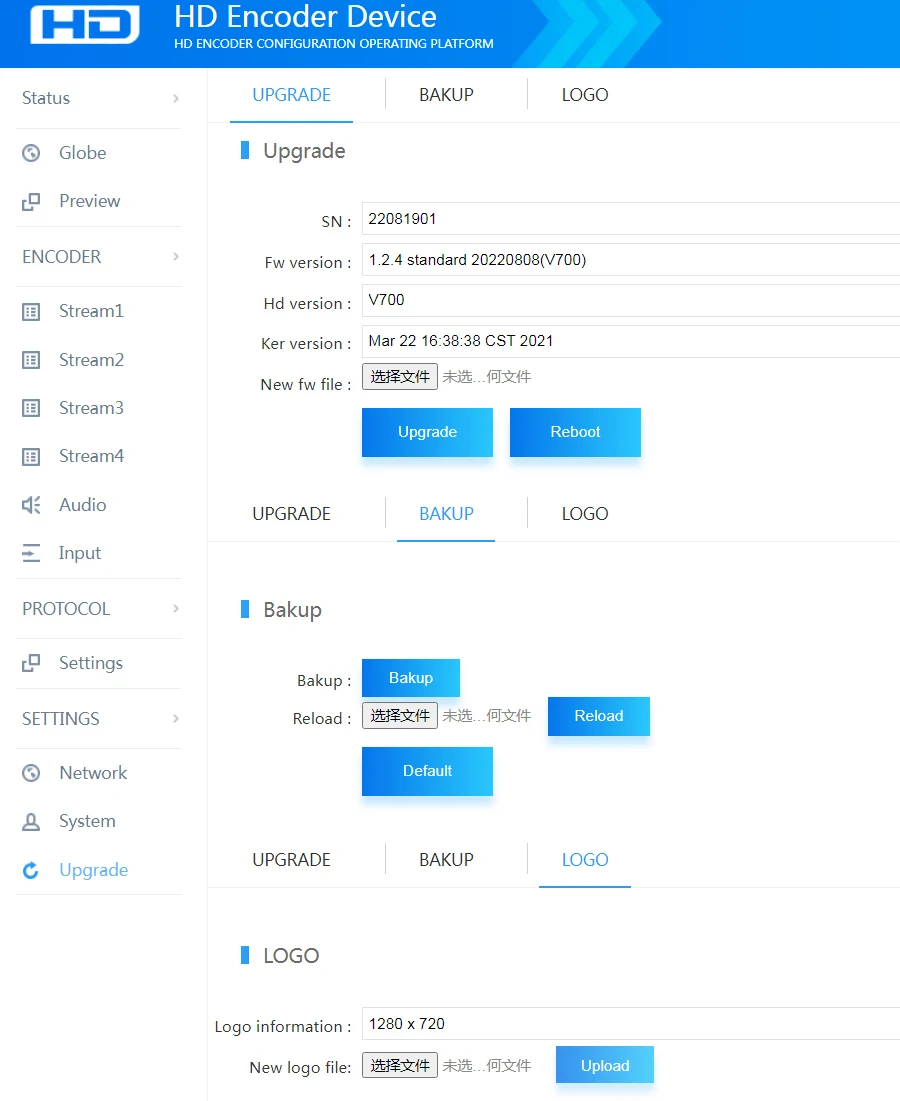

Firmware Update	Enable by uploading files to dashboard and upgrade
General
Dimension (W* L* H)	482 x 355 x 147/mm
Net Weight	6.65 kg
Temperature	0 to 45(For working), -20 to 80(For storing)

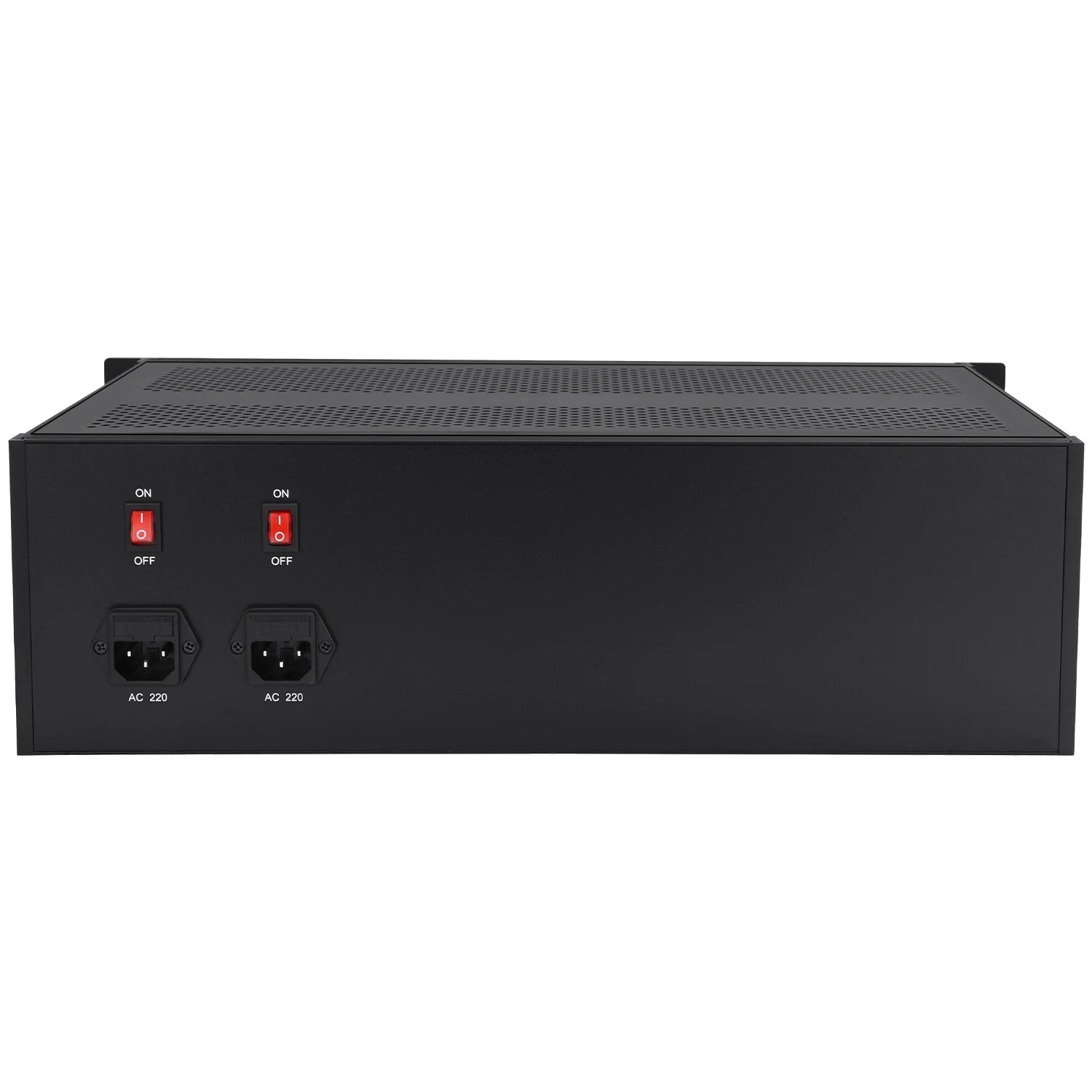

Input Voltage	AC 110V~220V
Material	Aluminum Shell
